Grain Tank Sample Trough

H96883
H96883-UN-14JUN10

H96884
H96884-UN-14JUN10

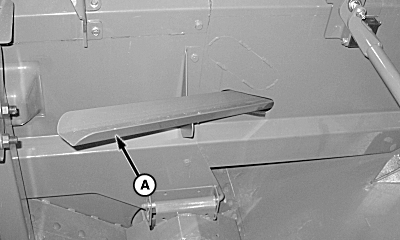

A - Sample Trough

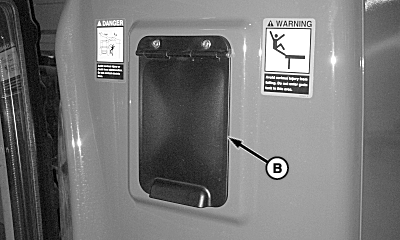

B - Door

Grain tank sample trough (A) allows operator to take a sample of the harvested crop from the loading auger without entering the grain tank.

With machine full of harvested crop, move multi-function lever to neutral position and apply the parking brake.

Disengage header, but leave separator engaged.

CAUTION: Do not have a second person check for a grain tank sample.

Open door (B). Lower end of grain tank trough spills off sample of harvested crop.

OUO6075,0000A45-19-20101213
