Grain Tank Loading Auger Deflector

CAUTION:

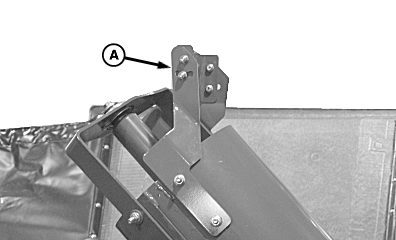

H96890-UN-14JUN10

A - Deflector

Position deflector (A) as needed.

Counterclockwise rotation:

• Windy conditions when harvesting crops like grass seed or rape.
• Corn—Grain tank will fill to the left and to the rear.

Clockwise rotation:

• Grain—Grain tank will fill to the right and to the front.
