Unloading Auger Drive Belt—Replacing

CAUTION:

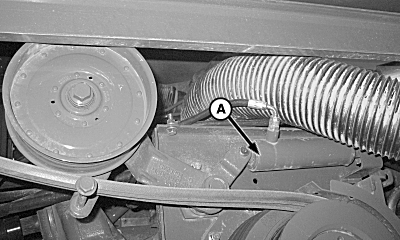

H99327-UN-06DEC10

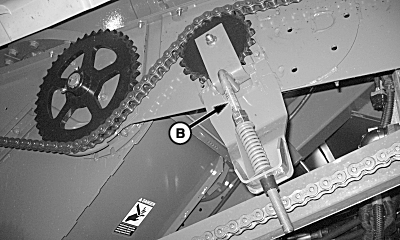

H96892-UN-14JUN10

H96893-UN-15JUN10

A - Hydraulic Cylinder

B - Tensioner

C - Sprocket

D - Belt Trap

E - Isolator Strap

F - Cap Screws (4 Used)

G - Pump Assembly

Verify hydraulic cylinder (A) is disengaged and retracted.

Loosen tensioner (B) on unloading auger drive chain.

Remove chain from driver sprocket (C) on countershaft.

Remove cap screws from belt trap (D).

Remove isolator strap (E) and cap screws (F).

Remove pump assembly (G) and support out of way.

Remove and replace belts.

Install pump assembly and tighten cap screws to specification.

Item	Measurement	Specification
Cap Screws	Torque	80 N·m (59 lb.-ft.)

Install previously removed isolator strap and belt trap.

Install drive chain and adjust idler until washer aligns with end of gauge.
