Grain Tank Loading Auger (Grain Tank Covers)—Adjusting

CAUTION:

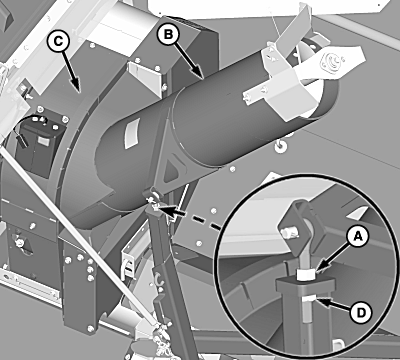

H98919
H98919-UN-28OCT10

A - Nut

B - Grain Tank Loading Auger

C - Transition Housing

D - Nut

Shut OFF engine, set parking brake and remove key.

NOTE: Verify that grain tank covers are fully raised.

Adjust nut (A) until grain tank loading auger (B) is seated fully against transition housing (C).

Tighten nut (D) when grain tank loading auger is seated fully against transition housing.

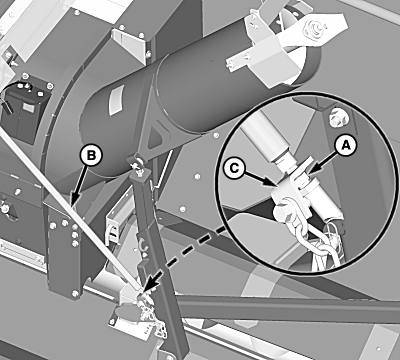

H98920
H98920-UN-28OCT10

A - Nut

B - Turnbuckle

C - Bracket

Loosen nut (A) and adjust turnbuckle (B) by hand until a slight amount of resistance is felt.

Verify bracket (C) faces towards front of machine and tighten nut (A) to lock turnbuckle into place.
