Mass Flow Sensor Plate (Grain Tank Covers)—Cleaning

CAUTION:

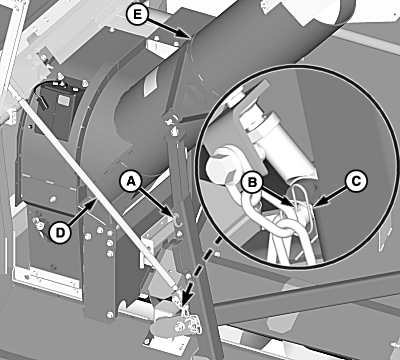

H98921-UN-28OCT10

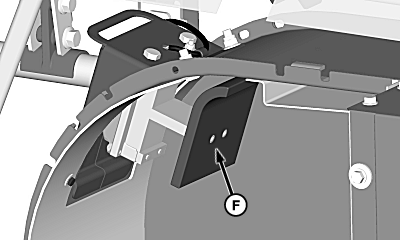

H98922-UN-28OCT10

A - Pin

B - Quick-Lock Pin

C - Pin

D - Turnbuckle

E - Grain Tank Loading Auger

F - Mass Flow Sensor

DO NOT pull or remove pin (A) to lower grain tank loading auger. Removing pin could result in personal injury or machine damage.

Grain tank loading auger is heavy. Use extra care when raising or lowering auger.

Remove quick-lock pin (B) and pin (C) from turnbuckle (D).

Fully lower grain tank loading auger (E) to access mass flow sensor plate (F).

Raise grain tank loading auger fully against transition housing.

Align turnbuckle with hole and retain with pin and quick-lock pin.
