Cab Fascia Light Angle—Adjusting

NOTE:

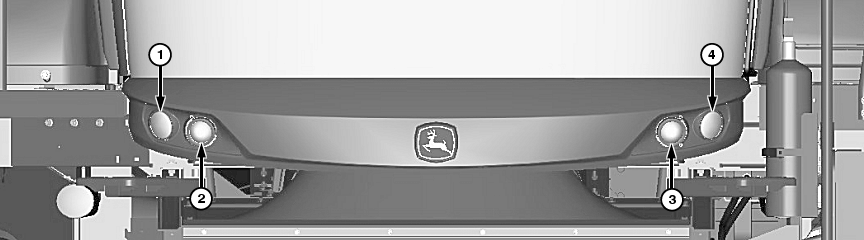

H98979-UN-02NOV10

Verify that machine has correct tire pressure and is placed on a level surface before adjusting lights.

Adjust lights any time a different tire size or set is installed.

Front Tire Size	Load Index	Light 1 and 4 Work Lights	Light 2 and 3 Lower Driving Lights
1050/50R32 HF2	178A8	4.0° Down 55° Out	3.7° Down 0° Out
30.5L-32 R1	14PLY
30.5LR32 3* R1	170A8
480/80R42 R1 Duals	154A8
520/85R38 R1 Duals	155A8
800/65R32 R1W	172A8
680/85R32 R1	178A8	4.0° Down 55° Out	3.9° Down 0° Out
900/60R32 R1	176A8
900/60R32 R1W	176A8
520/85R42 R1 Duals	157A8
520/85R42 R1 Duals	162A8
900/65R32 R2	178A8
800/75R32 R1W	178A8
520/85R42 R2 Duals	157A8	4.0° Down 55° Out	4.0° Down 0° Out
650/85R38 R1W Duals	173A8
800/70R38 R1W	181A8
800/70R38 R1W	173A8
76X50-32 16PR HF3	16PLY
900/60R38 R1W	181A8
