Cab Headlight Angle—Adjusting

NOTE:

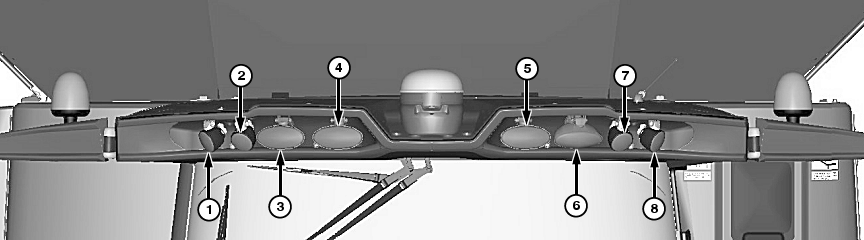

H98978-UN-02NOV10

Verify that machine has correct tire pressure and is placed on a level surface before adjusting lights.

Adjust lights any time a different tire size or set is installed.

Front Tire Size	Load Index	Light 1 and 8		Light 2 and 7 Halogen/High Intensity Discharge	Light 3 and 6		Light 4 and 5
		Halogen	High Intensity Discharge		Europe	North America
1050/50R32 HF2	178A8	18° Down 40° Out	15° Down 40° Out	14° Down 10° Out	6.9° Down	2.8° Down	3.0° Down
30.5L-32 R1	14PLY
30.5LR32 3* R1	170A8
480/80R42 R1 Duals	154A8
520/85R38 R1 Duals	155A8
800/65R32 R1W	172A8
680/85R32 R1	178A8	18° Down 40° Out	15° Down 40° Out	14° Down 10° Out	7.1° Down	2.8° Down	3.0° Down
900/60R32 R1	176A8
900/60R32 R1W	176A8
520/85R42 R1 Duals	157A8
520/85R42 R1 Duals	162A8
900/65R32 R2	178A8
800/75R32 R1W	178A8
520/85R42 R2 Duals	157A8	18° Down 40° Out	15° Down 40° Out	14° Down 10° Out	7.3° Down	2.8° Down	3.0° Down
650/85R38 R1W Duals	173A8
800/70R38 R1W	181A8
800/70R38 R1W	173A8
76X50-32 16PR HF3	16PLY
900/60R38 R1W	178A8
