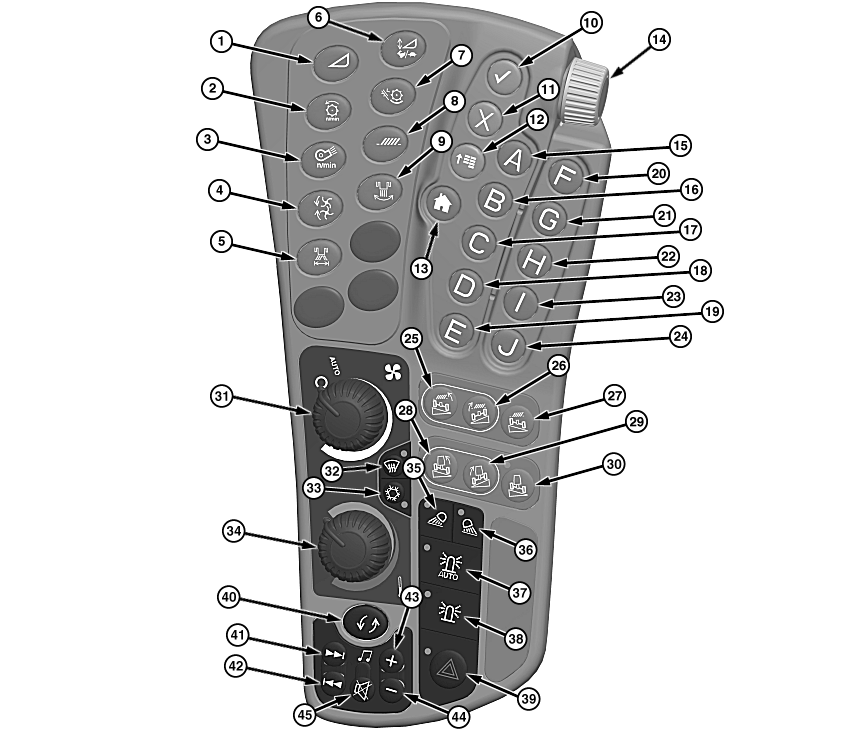

CommandARM™ Controls

NOTE:

H95196-UN-27JAN10

1 - Header Adjustment Switch

2 - Threshing Speed Adjust Switch

3 - Cleaning Fan Speed Adjust Switch

4 - Spreader Speed Adjust Switch

5 - Discharge Swap Switch (If Equipped)

6 - Feeder House Rate/Sensitivity Adjust Switch

7 - Threshing Clearance Adjust Switch

8 - Chaffer/Sieve Adjust Switch

9 - Chopper Vane Angle Adjust Switch (If Equipped)

10 - Confirm Switch

11 - Cancel Switch

12 - Main Menu Switch

13 - Home Switch

14 - Selection Dial

15 - 24 - A—J Shortcut Switches

25 - Self-Leveling Shoe Tilt Right Switch (If Equipped)

26 - Self-Leveling Shoe Tilt Left Switch (If Equipped)

27 - Self-Leveling Shoe Enable Switch (If Equipped)

28 - HillMaster Manual Tilt Left Switch (If Equipped)

29 - HillMaster Manual Tilt Right Switch (If Equipped)

30 - HillMaster Automatic Leveling Control Switch (If Equipped)

31 - Fan Speed Control Dial

32 - Defrost Switch

33 - Air Conditioner Switch

34 - Temperature Control Dial

35 - Work Lights 1 (Front Stubble) Switch

36 - Work Lights 2 (Rear Discharge) Switch

37 - Auto Beacon Lights Switch

38 - Beacon Lights Switch

39 - Hazard Warning Lights Switch

40 - Mode Selection Switch (AM/FM/WB/CD/Aux) (If Equipped)

41 - Radio Frequency (Forward) (If Equipped)

42 - Radio Frequency (Reverse) (If Equipped)

43 - Volume Increase (If Equipped)

44 - Volume Decrease (If Equipped)

45 - Mute (If Equipped)

Before operating machine, become familiar with switches and controls.
