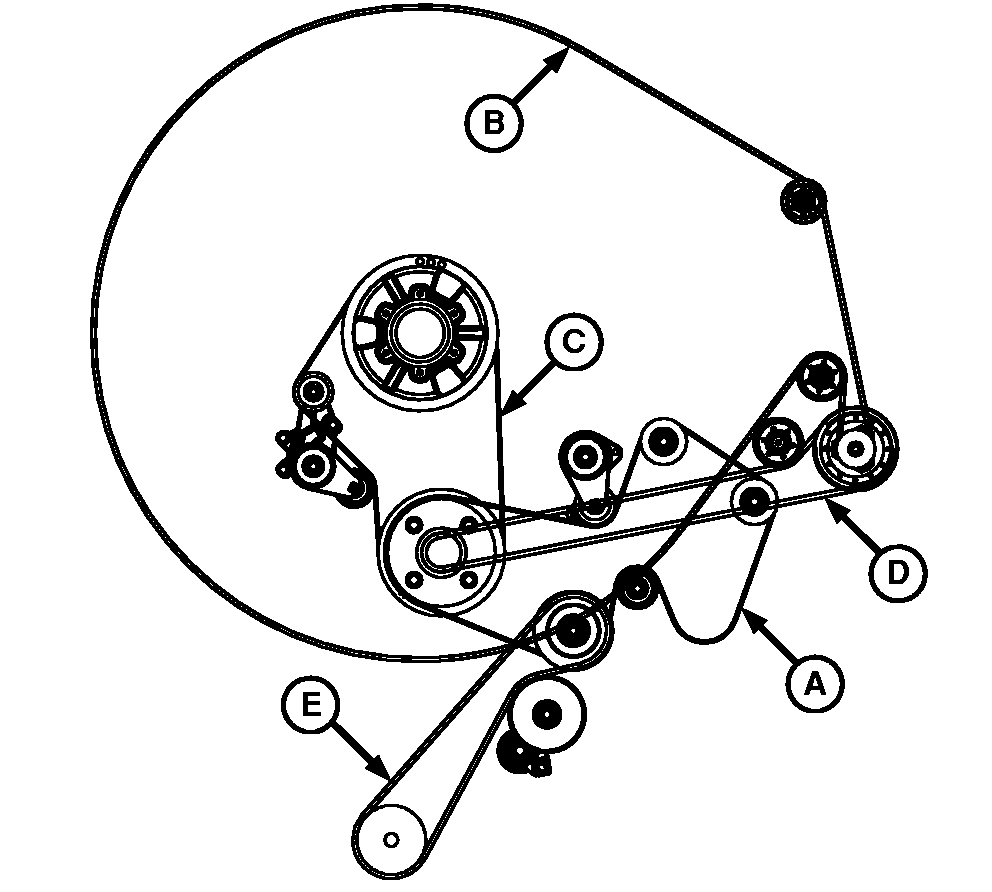

Engine Belt—Routing (Interim Tier 4/Stage III B)

H99552-UN-06JAN11

A - Air Conditioner Compressor, Alternator Belt

B - Rotary Screen Drive Belt, Screen Side

C - Fan Drive Belt

D - Rotary Screen Drive Belt, Engine Side

E - Vacuum Fan Drive Belt
