Display Navigation Layouts

H95608
H95608-UN-30APR10

Infotainment (A) 1

Diagnostic and Calibrations (B)

Combine Main (F)

Harvesting Information (G) 2

Combine Setup (H)

Header Setup (I) 3

Engine Information (J)

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.

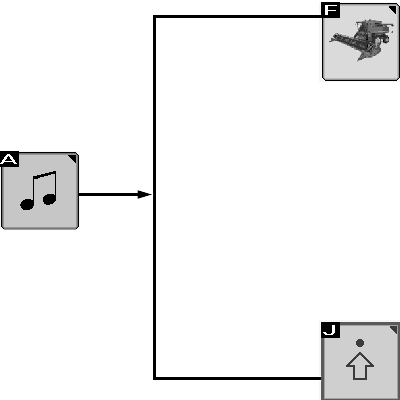

Infotainment

H95613
H95613-UN-04MAR10

Infotainment (A) 1

Icon (F)

Icon (J)

Combine Main

Bass

Middle

Treble

Fade

Balance

Equalize—Manual

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.

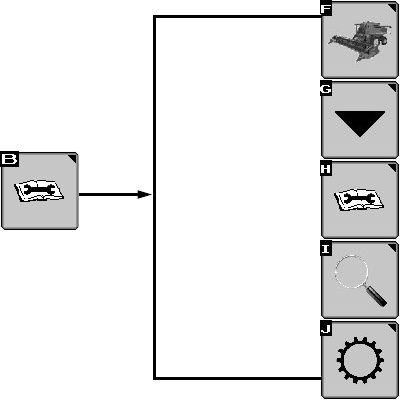

Diagnostic and Calibrations

H95605
H95605-UN-05MAR10

Diagnostic and Calibrations (B)

Icon (F)

Icon (G)

Icon (H)

Combine Main

Calibrations

Diagnostic Readings



Icon (I)

Icon (J) 4

Special Tests

Tow Mode Setup

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.

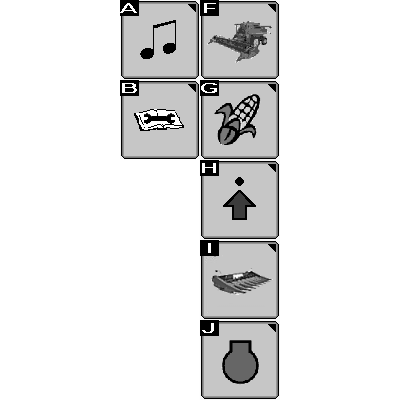

Combine Main

NOTE:

H95612
H95612-UN-30APR10

Combine main icon appears on all display screens. Allows operator to navigate back to combine main screen.

Combine Main (F)

Icon (A)

Infotainment 1

Icon (B)

Diagnostic and Calibrations

Icon (F)

Combine Main

Icon (G)

Harvesting Information 2

Icon (H)

Combine Setup

Icon (I)

Header Setup 3

Icon (J)

Engine Information

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.


Harvesting Information

H95601
H95601-UN-04OCT10

Harvesting Information (G) 2

Icon (F)

Icon (G)

Combine Main

Yield Information

Moisture Information

Change Cut Width/Rows5



Icon (I)6

Icon (J)6

Field Totals

Crop Totals

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.

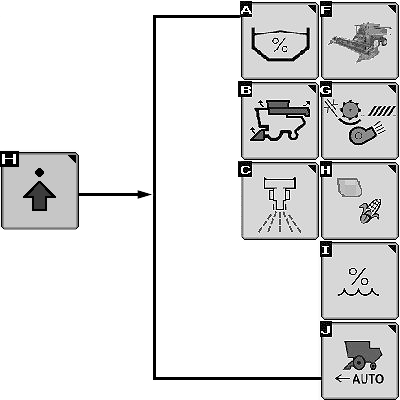

Combine Setup

H95602
H95602-UN-04MAR10

Combine Setup (H)

Icon (A)

Icon (B)

Icon (C)

Icon (F)

Grain Tank Level Setup

Folding Functions Setup7

Residue Management Setup8

Combine Main



Icon (G)

Icon (H)

Icon (I)

Icon (J)

Automatic Combine Adjust Setup

Crop Setup9

Moisture Alarm

Harvest Smart Feed Rate Setup10

Seed Size Setup

Moisture Correction (Offset)

Grain Loss Calibration

Yield Units

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.

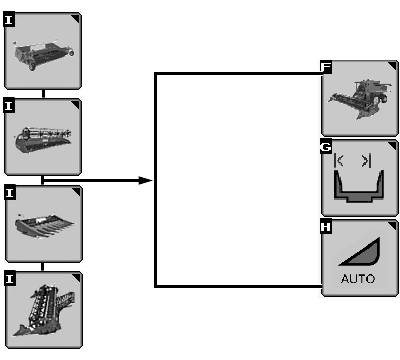

Header Setup

H95603
H95603-UN-30APR10

Header Setup (I) 3

Icon (F)

Icon (G) 3

Combine Main

Header Width Setup

Header Hours

Record Stop Height



Icon (H)

Automatic Header Height Modes

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.

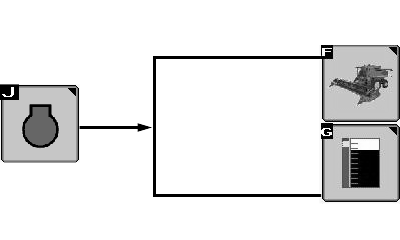

Engine Information

H95604
H95604-UN-04MAR10

Engine Information (J)

Icon (F)

Icon (G)

Combine Main

Engine and Separator Hours

Power Meter

Exhaust Filter Cleaning 11

Touch or press confirm switch when desired icon is highlighted to advance to next display screen. See following information for further screen navigation.

1 Only displays with Premium radio (DEA355).
2 Icon switches between corn and wheat based on type of header connected to machine.
3 Icon changes based on type of header connected to machine.
4 Only appears with ProDrive and push button shift transmission machines.
5 If GreenStar display is installed, cut width/rows are adjusted through GreenStar display and only shown on armrest display.
6 If GreenStar display is installed, Field Totals page and Crop Totals Page will not be available. Totals will be viewed in GreenStar display.
7 If equipped with folding grain tank covers.
8 If equipped with Premium Flex Residue Chopper/Spreader.
9 If GreenStar display is installed, Crop will be setup in GreenStar display.
10 If Equipped with Harvest Smart Feed Rate.
11 Appears when equipped with Interim Tier 4/Stage III B engines.
