Select Yield Wet or Dry and Cut Width Change

Yield Wet or Dry:

NOTE:

H96262-UN-04MAY10

Harvesting Information Icon

H94546-UN-05OCT10

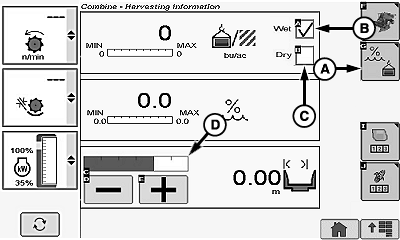

A - Yield Information Icon

B - Yield Wet Box

C - Yield Dry Box

D - Cut Width Adjust Bar Graph

Touch or press confirm switch when harvesting information icon is highlighted.

Touch or press confirm switch when yield information icon (A) is highlighted.

Touch or press confirm switch when desired yield wet box (B) or yield dry box (C) is highlighted.

Box displays a checkmark indicating which was selected.

• Yield Wet - shows number of yield units per number of area units at current harvesting conditions.
• Yield Dry - shows number of yield units per number of area units after taking into consideration the removal of moisture.

Cut Width:

NOTE: If GreenStar display is installed, cut width/rows are adjusted through GreenStar display and only shown on armrest display.

Touch or press confirm switch when cut width adjust bar graph (D) is highlighted.

Touch plus (+) or minus (-) symbol or rotate selection dial until desired value is reached.

• Clockwise - increases cut width.
• Counterclockwise - decreases cut width.

Touch or press confirm switch to enter desired cut width into memory.
