ClimaTrak Recirculating Filter—Removing

H94839-UN-19MAY10

H94840-UN-19MAY10

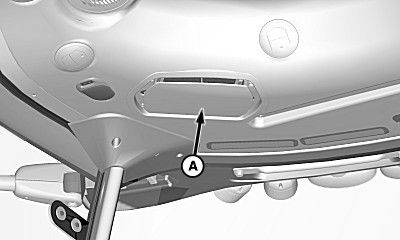

A - Cover

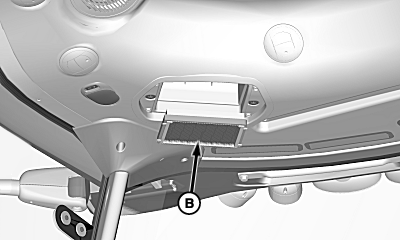

B - Recirculating Filter

Recommended Service Interval
Clean Filter (Dusty Conditions)	Daily
Clean Filter (Normal Conditions)	Every 200 Hours

Remove cover (A) to clean recirculating filter (B).

Install filter and cover in reverse order.
