Water Separator Primary Fuel Filter—Draining (Interim Tier 4/Stage III B)

CAUTION:

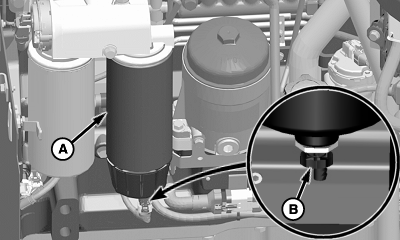

H95331
H95331-UN-11FEB10

A - Primary Fuel Filter

B - Drain

Shut OFF engine, set parking brake and remove key before performing maintenance work.

When primary fuel filter (A) senses water in fuel system a diagnostic trouble code is generated.

If a diagnostic trouble code appears, drain primary filter using drain (B) and reset code.

OUO6075,0000592-19-20101027
