Feeder House Drum—Height Adjustment

CAUTION:

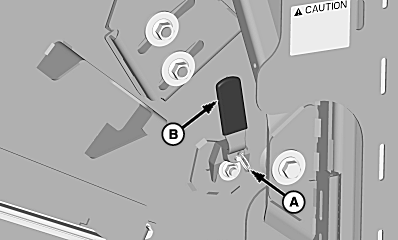

H90908
H90908-UN-27FEB08

Corn Only Position

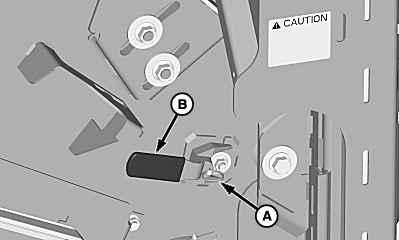

H90909
H90909-UN-27FEB08

Small Grain Position

A - Pin

B - Drum Height Handle

Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

Open feeder house shields.

Pull and hold pin (A) while rotating handle (B) to desired crop position on both sides.

Close feeder house shields.

OUO6075,000067E-19-20100202
