Light Switches

NOTE:

H99531
H99531-UN-03JAN11

Steering Column Light Selection Switch

H99532
H99532-UN-03JAN11

Armrest Light Switches

A - Light Selection Switch

B - OFF Position

C - Park Light Switch

D - Road Light Switch

E - Field Light Switch

F - Momentary High Beam

G - Low Beam Position

H - High Beam Position

I - Front Stubble Light Switch

J - Rear Discharge Light Switch

K - Auto Beacon Light Switch

L - Beacon Light Switch

M - Hazard Light Switch

Exit lights remain ON for a maximum of 90 seconds after key switch is turned OFF (if road or field lights were used within the previous five minutes). Operator chooses to light left or right side of machine with turn signal lever.

When all lights are first turned to the ON position with key switch OFF, there will be a slight delay before lights turn ON.

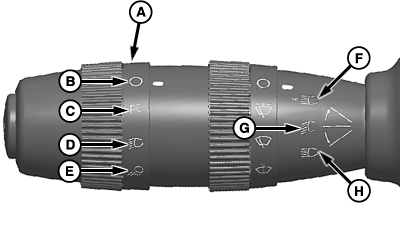

Light selection switch (A) on steering column is used to control the following:

  • OFF Position (B)
  • Park light switch (C) controls:
    • Marker lights
  • Road light switch (D) controls:
    • Warning (flashing) lights
    • Four headlights (Two Low Beam Lights and Two High Beam Lights)
    • Beacon lights
    • Lower driving lights (if equipped)
  • Field light switch (E) controls:
    • Grain tank and all eight headlights
    • Side finder lights with turn signal lever
    • Unloading auger light when extended
    • Taillights and warning lights

Light selection lever on steering column is used to control the High/Low beam headlights:

  • Momentary High Beam (F):
    • Pull lever to upper position momentarily activates high beams.
  • Low Beam Position (G):
    • Pull lever to middle position to operate low beams.
  • High Beam Position (H):
    • Push lever to lower position to activate high beam headlights.NOTE: High beam indicator will illuminate on cornerpost.

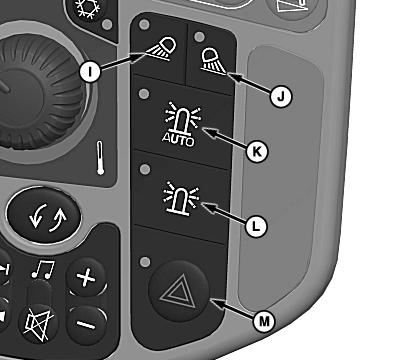

Armrest light switches are used to control the following:

  • Front Stubble light switch (I) controls:
    • Stubble lights in front of machine
    • Fascia lights (if equipped)
  • Rear Discharge light switch (J) controls:
    • Rear residue lights at rear of machine
  • Auto Beacon light switch (K) controls:
    • Auto beacon lights shut OFF
  • Beacon light switch (L) controls:
    • Beacon lights
  • Hazard light switch (M) controls:
    • Warning (flashing) lights
    • Four road lights and taillights if engine is running
