Water Separator Primary Fuel Filter—Draining (Tier 2/Stage II)

CAUTION:

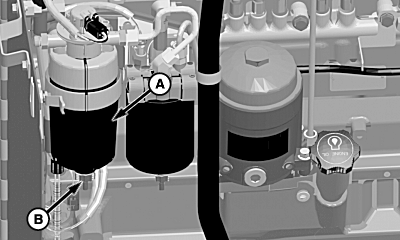

H95380
H95380-UN-16FEB10

A - Primary Fuel Filter

B - Drain

Shut OFF engine, set parking brake and remove key before performing maintenance work.

When primary fuel filter (A) senses water in fuel system a diagnostic trouble code is generated.

If a diagnostic trouble code appears, drain primary filter using drain (B) and reset code.

OUO6075,00006A3-19-20101215
