Diagnostic Trouble Code Screen Information

H95519
H95519-UN-01MAR10

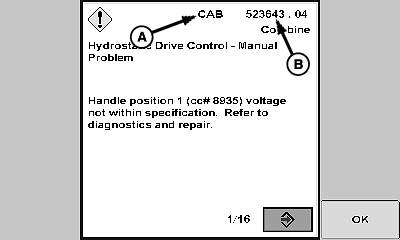

Active Trouble Code

H95520
H95520-UN-05OCT10

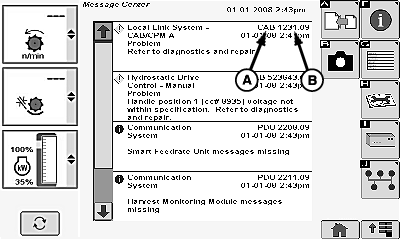

Message Center Active Trouble Code

H95521
H95521-UN-05OCT10

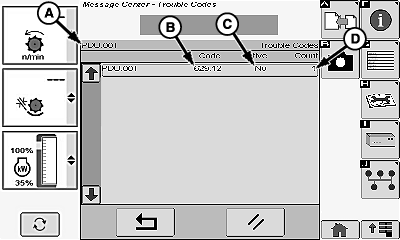

Individual Control Unit Stored Trouble Code

H95522
H95522-UN-05OCT10

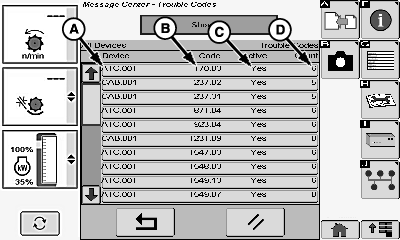

All Control Unit Stored Trouble Codes

A - Control Unit/Device

B - Trouble Code

C - Active (Yes/No)

D - Count

When a diagnostic trouble code screen appears or a diagnostic trouble code needs to be retrieved, the following information must be provided to your John Deere dealer to properly diagnose the symptom:

  • Control Unit (A)
  • Trouble Code (B)
  • Active (Yes/No) (C)
  • Count (D)

NOTE: Touch or press confirm switch when up arrow or down arrow is highlighted to scroll through trouble codes if multiple codes are displayed.

OUO6075,00006C9-19-20100301
