Vacuum Fan Driven Belt—Replacing (Interim Tier 4/Stage III B)

CAUTION:

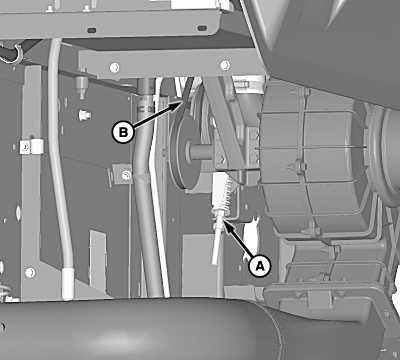

H95667
H95667-UN-11MAR10

A - Nuts

B - Vacuum Fan Driven Belt

Shut OFF engine, set parking brake and remove key.

Loosen nuts (A) and remove vacuum fan driven belt (B) located below radiator.

Install replacement vacuum fan driven belt.

Tighten nuts until washer is positioned between end of gauge and bottom of step.

OUO6075,00006DC-19-20100331
