Rotary Screen Drive Belt—Replacing (Tier 2/Stage II)

CAUTION:

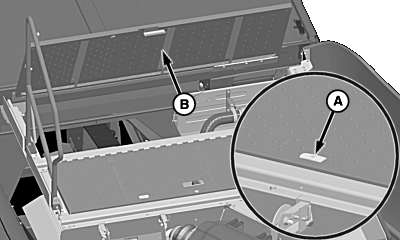

H95646
H95646-UN-10MAR10

A - Latch

B - Separator Access Cover

Shut OFF engine, set parking brake and remove key.

Turn latch (A) to open separator access cover (B).

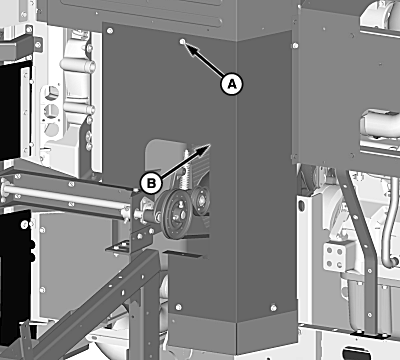

H95700
H95700-UN-15MAR10

A - Cap Screws (7 Used)

B - Shield

Remove cap screws (A) and shield (B).

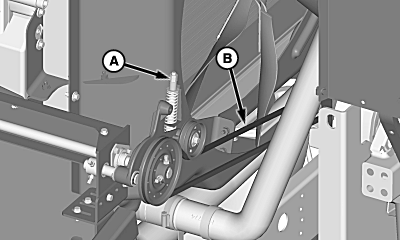

H95701
H95701-UN-15MAR10

A - Nuts

B - Rotary Screen Drive Belt

Loosen nuts (A) and remove rotary screen drive belt (B).

Install replacement belt and tighten nuts until washer is positioned between end of gauge and bottom of step.

Install previously removed shield and close separator access cover.

OUO6075,00006E3-19-20101215
