Connecting Multiple Displays and Auxiliary Controls

H95878
H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95849
H95849-UN-31MAR10

Display
Application Icon

Press main menu icon or switch.

Touch or press confirm switch when display settings icon is highlighted.

H95737
H95737-UN-05OCT10

A - Advanced Settings Icon

Touch or press confirm switch when advanced settings icon (A) is highlighted.


Connecting Multiple Displays:

NOTE:

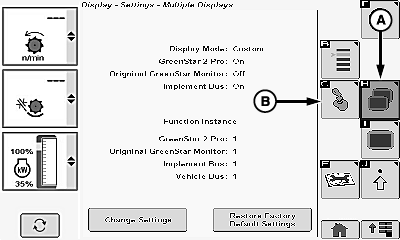

H96256
H96256-UN-05OCT10

A - Multiple Displays Icon

B - Auxiliary Controls Icon

Software automatically detects if another display is connected. See your John Deere dealer for further information before changing any settings or if system does not detect connected display.

Auxiliary Controls:

NOTE: Auxiliary controls feature is not available.

H95878
H95878-UN-29MAR10

Main Menu Icon (Display) / Main Menu Switch (Armrest)

H95845
H95845-UN-31MAR10

Combine Main
Application Icon

Press main menu icon or switch.

Touch or press confirm switch when combine main page icon is highlighted.

OUO6075,00006ED-19-20101005
