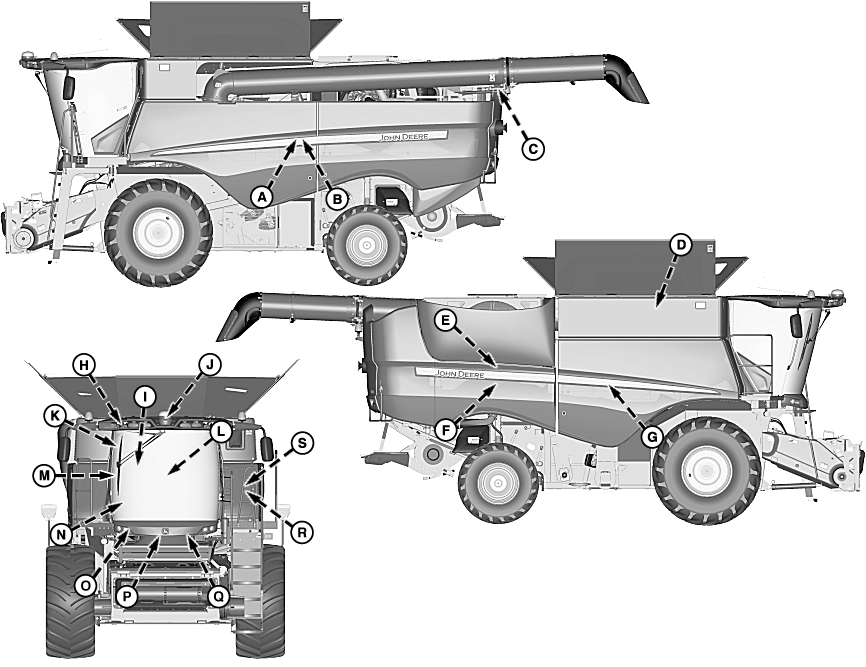

Controller and Power Module Locations

H96579
H96579-UN-08OCT10

A—

Left Control Unit 2 (LC2)

K—

GreenStar Display (Optional)

B—

  • Left Power Module 2A (LP2A) (Optional)
  • Left Power Module 2B (LP2B) (Optional)

L—

Steering Column Lever (SCL)

C—

Vehicle Control Unit (VCM) (Optional)

M—

Primary Display Unit (PDU)

D—

Mass Flow Sensor

N—

  • Cab Control Unit (CAB)
  • Cab Power Module 2 (CPMB) (Optional)
  • Telematics (MTG)

E—

Engine Control Unit (ECU)

O—

Not Available

F—

  • Right Control Unit (RCU)
  • Right Control Power Module (RCU)

P—

AutoTrac Controller (SSU) (Optional)

G—

Moisture Sensor (AYM)

Q—

ProDrive Transmission Controller (PTP) (Optional)

H—

  • Cab Power Module (CPMA)
  • HVAC Controller (ATC)

R—

Left Power Module 1 (LPM1)

I—

  • Cab Switch Module (CSM)
  • Multi-Function Lever

S—

Left Control Unit (LC1)

J—

GreenStar Position Receiver (Optional)
