Alternator and Voltage Regulator

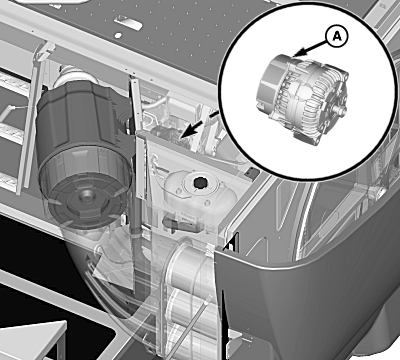

H96650-UN-27MAY10
Alternator (Tier 2/Stage II)

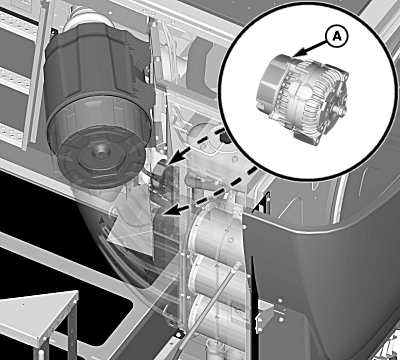

H96651-UN-27MAY10
Alternators (Interim Tier 4/Stage III B)
A - Alternator
Always disconnect battery ground cable before working on alternator (A) or regulator.Machine is equipped with 200 Amp alternator. Never attempt to polarize alternator or regulator.
Never ground a terminal or connect a jumper wire to any alternator terminals.
Never connect or disconnect alternator wires with batteries connected or alternator operating.
OUO6075,0000792-19-20101215 |
