Left-Hand Side Shields

CAUTION:

H74780
H74780-UN-14JAN03

A - Quick-Lock Pin

B - Quick-Lock Pin

C - Cap Screws

Shut OFF engine, set parking brake and remove key.

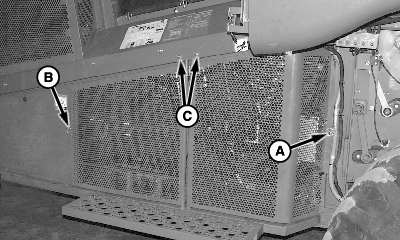

Side Shields— Remove quick-lock pin (A and B) to open shields.

Remove cap screws (C) and lift shields to remove.

H96803
H96803-UN-09JUN10

A - Quick-Lock Pin

B - Latch

C - Shield

Fan Shield— Remove quick-lock pin (A) and turn latch (B) to remove shield (C).

H96804
H96804-UN-09JUN10

A - Quick-Lock Pins

B - Shield

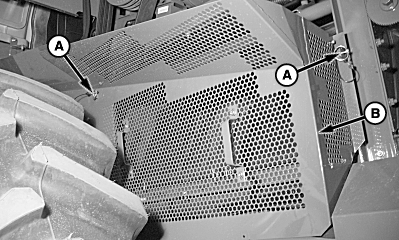

Upper Separator Shield— Remove quick-lock pins (A) and remove shield (B).

H96804
H96804-UN-09JUN10

H96805
H96805-UN-09JUN10

A - Quick-Lock Pins

B - Shield

C - Cap Screw

D - Shield

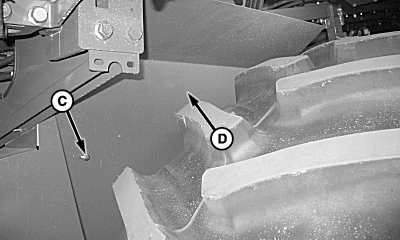

Front Separator Shield— Remove quick-lock pins (A) and remove shield (B).

Remove cap screw (C) and push front separator shield (D) rearward to remove.
