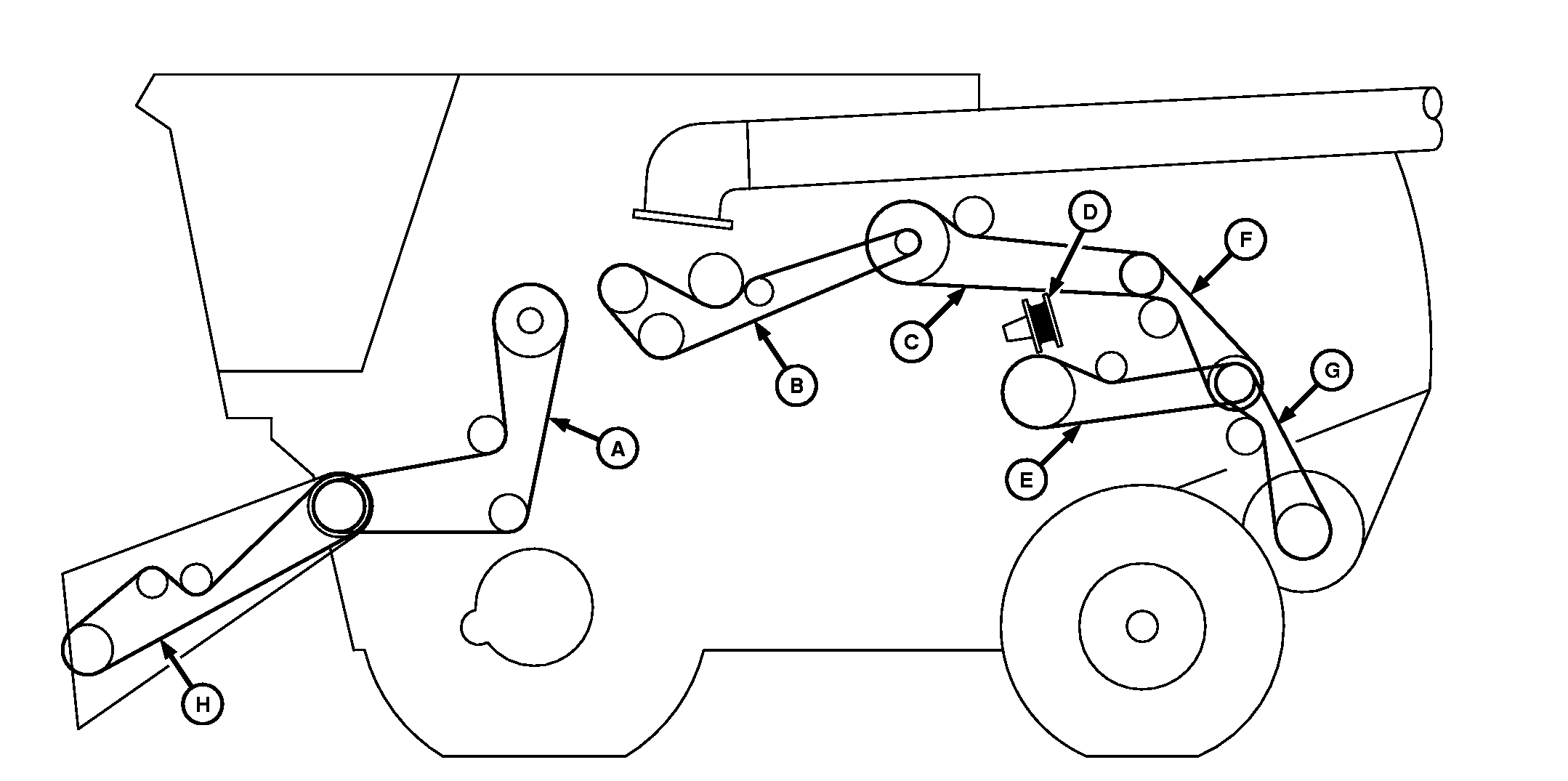

Drive Belts—Left-Hand

H96907-UN-16JUN10

A - Header and Reel Pump Standard/High Capacity Belt

B - Unloading Auger System, #60 Roller Chain

C - Unloading Auger System Belt

D - Separator Variable Drive Belt

E - Discharge Beater Belts (Rice Machine)

E - Discharge Beater Belt (Non-Rice Machine)

F - Countershaft, Discharge Beater and Chopper Belt

G - Straw Chopper High Speed Belt

G - Straw Chopper Slow Belt

H - Fixed Speed Feeder House Drive Belt

H - Feeder House Variable Drive Standard/High Capacity Belt
