Cleaning Out Machine (Annual and Specialty Crops)
CAUTION:

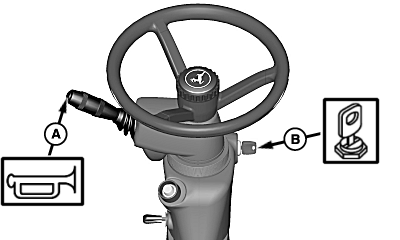

H97186-UN-02NOV10
A - Horn
B - Key Switch
To prevent injury, never clean machine with engine running and separator engaged. Shut OFF engine, set parking brake and remove key.The following instructions are recommended when cleaning out machine for certified seed crops or when transporting machine inter-state.
CAUTION: Block header safely so it does not move. Lower reel safety stops.
Remove header from machine.
Drive machine over end rows or bumps to jar and shake dirt loose. Shut OFF engine, set parking brake and remove key.
Open or remove all doors and drain holes.
CAUTION: Sound horn (A) to clear everyone from area. Stay clear of machine when discharging chaff.
Turn key switch (B) to start engine.
Engage separator until chaff stops coming out rear of machine.
Lower engine rpm to low idle and engage separator several times. Running the separator at low idle removes dirt from inside the rotor.
Move throttle to high rpm and run for a few minutes. Repeat cycle until chaff no longer comes out rear of machine.
CAUTION: Keep bystanders clear of machine when discharging chaff.
Drive machine onto blocking so right-hand side is about 150 mm (6 in.) higher, or park on incline so dirt can run out.
CAUTION:
H39607-UN-11OCT88
When working with compressed air in dusty conditions, you must wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft.) wand (end).
Start at top of machine and work down.

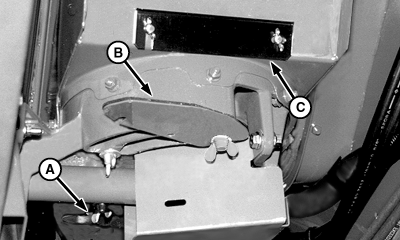

H62230-UN-19JAN00
A - Cleanout Door
B - Cleanout Door
C - Cleanout Door
Open cleanout doors (A), (B) and (C).Clean grain from under grain tank cross augers over to the sump.
Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from doors standing on ground.
Manual Fold Clean Grain Auger (If Equipped):
H98766-UN-21OCT10

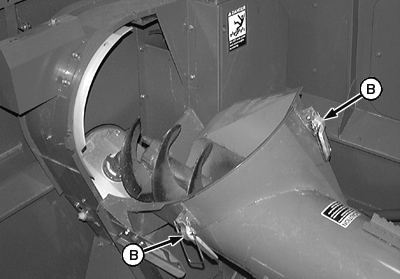

H51797-UN-15JAN99
A - Sample Trough
B - Clamps
Remove grain tank sample trough (A) (if equipped) and place in storage position inside grain tank.Release clamps (B) and lower auger.
Clean top area and down into clean grain elevator to clean elevator chain. Clean all sides.

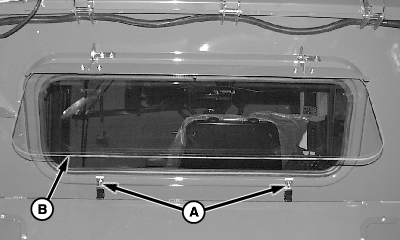

H76204-UN-28APR03
A - Clamps
B - Grain Tank Window
Loosen clamps (A) and swing grain tank window (B) up.Cleanout area behind cab, around primary countershaft and over separator.

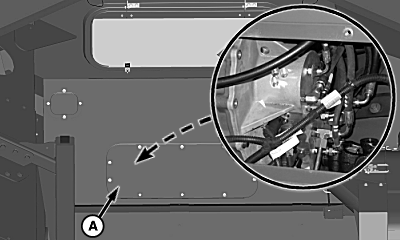

H87627-UN-13MAR07
A - Access Door
Remove access door (A) (if equipped) on front side of grain tank.Cleanout material around multi-speed feeder house drive gearcase.

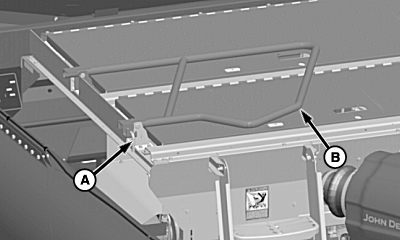

H95355-UN-15FEB10
A - Pin
B - Handrail
Pull pin (A) and lift handrail (B) into position.

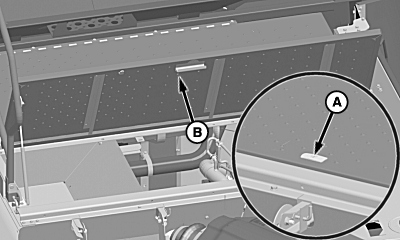

H95357-UN-15FEB10

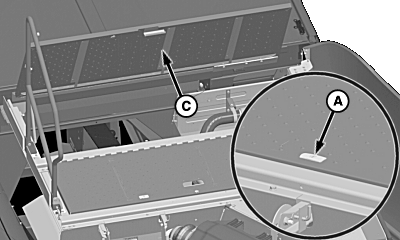

H95358-UN-15FEB10
A - Latch
B - Engine Access Cover
C - Separator Access Cover
Turn latch (A) to open engine access cover (B) or separator access cover (C).Clean top side of engine compartment area and around separator on front side of engine.
Clean entire engine compartment area, especially under engine.
Wipe up any oil or grease found on engine area.
H95353-UN-25AUG10
A - Lock-Out Pin
B - Ladder
C - Cover
Pull lock-out pin (A) and rotate ladder (B) up until ladder locks into place.Pull filter access cover (C) open to release from magnet.
Clean rear side of engine compartment area.
Clean entire engine compartment area, especially under engine.
Wipe up any oil or grease found on engine area.

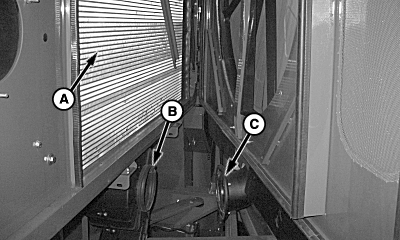

H97189-UN-30JUN10
A - Condenser
B - Vacuum Duct
C - Transfer Duct
Open rotary screen door and clean the following areas from inside out: condenser (A), oil cooler, charge air cooler, and radiator.Cleanout dirt from lower vacuum duct (B) and transfer duct (C).

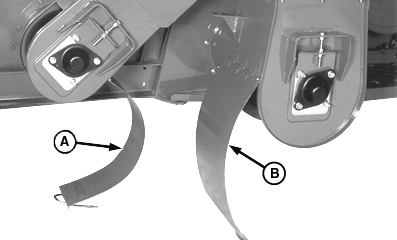

H62232-UN-19JAN00

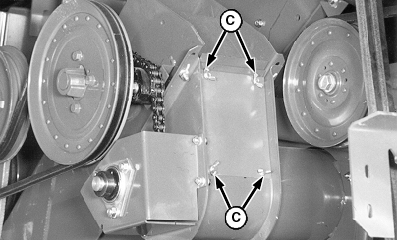

H62233-UN-19JAN00
A - Tailings Elevator Door
B - Clean Grain Elevator Door
C - Wing Nuts
Open lower tailings elevator door (A) and clean grain elevator door (B).Remove wing nuts (C) and remove door at upper end of tailings elevator.
Remove material as needed and clean sides of elevator.

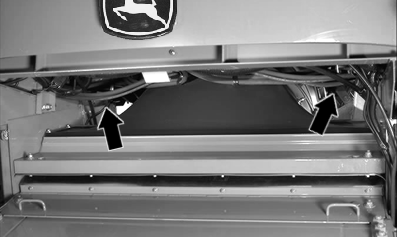

H75117-UN-10FEB03

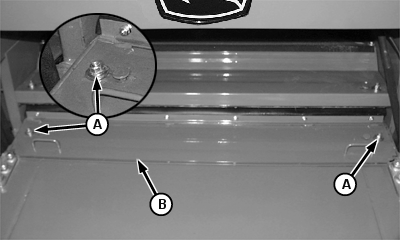

H76150-UN-24APR03
H90905-UN-27FEB08
A - Nuts
B - Feeder House Door
C - Feeder House Door
Loosen nuts (A) on each side of feeder house door and push nuts towards center of feeder house.Pull door forward to remove.
Clean feeder house through top doors (B) and (C).
Lift conveyor chain and let chain snap back several times while cleaning.

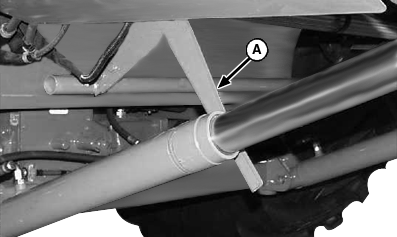

H52761-UN-17MAY99
A - Lever
Remove quick-lock pin and move lever (A) down and rearward to open feed plate.Cleanout feed plate area.
Push lever forward and up to close feed plate. Retain with quick-lock pin.

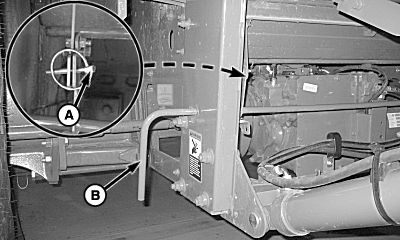

H99239-UN-01DEC10
A - Quick-Lock Pin
B - Lever
Remove quick-lock pin (A) and move lever (B) up to open stone trap.Cleanout stone trap area.
Move lever down to close stone trap. Retain with quick-lock pin.

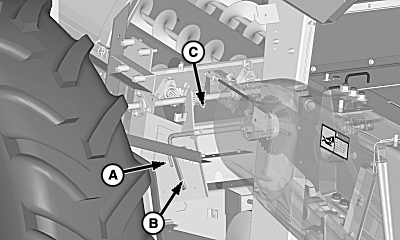

H91139-UN-15APR08
A - Lock-Out Pin
B - Handle
C - Cleanout Door
Pull lock-out pin (A) and move handle (B) up to dump cleanout door (C) and move handle down to close and lock cleanout door.

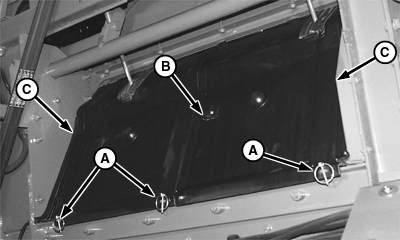

H62265-UN-19JAN00

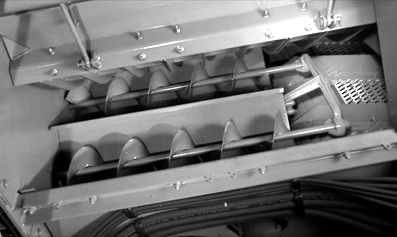

H52708-UN-23MAR99
A - Quick-Lock Pins
B - Spring Latch
C - Separator Covers
Remove quick-lock pins (A), spring latch (B) and separator covers (C). Use scraper to loosen material, and cleanout through sides of machine.

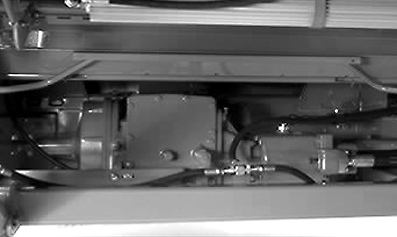

H52709-UN-23MAR99

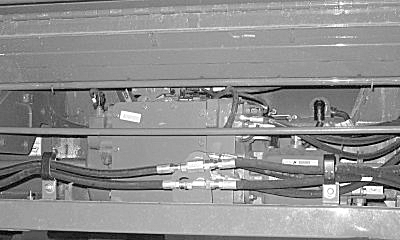

Mechanical Shift Machines
H99165-UN-22NOV10
Push Button Shift Machines

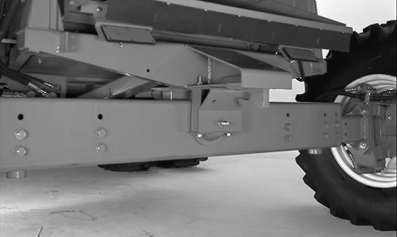

Clean off top of axle and transmission.
H52710-UN-23MAR99
H52711-UN-23MAR99

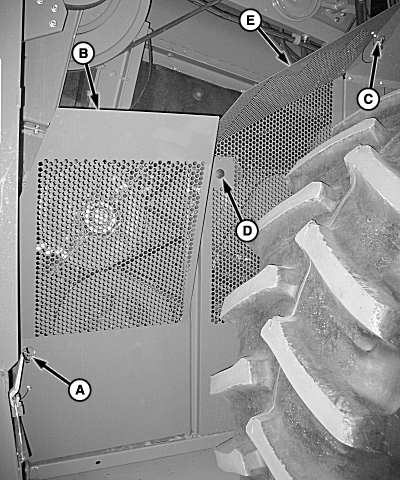

H96806-UN-09JUN10
A - Quick-Lock Pin
B - Shield
C - Quick-Lock Pin
D - Latch
E - Shield
Remove quick-lock pin (A) and open shield (B).Remove quick-lock pin (C) and turn latch (D) to unlock.
Lift and remove rear shield (B) and middle fan shield (E).
Cleanout fan area.

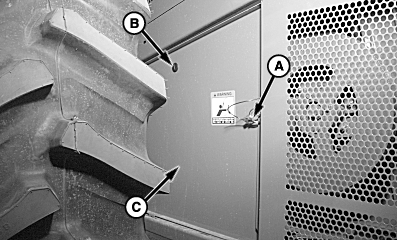

H96803-UN-09JUN10
A - Quick-Lock Pin
B - Latch
C - Shield
Remove quick-lock pin (A) and turn latch (B) to remove shield (C).Cleanout area.

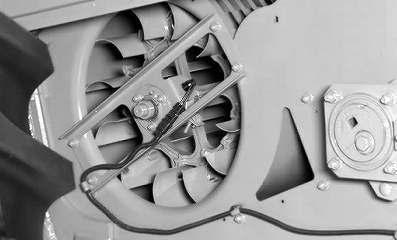

H62234-UN-19JAN00
H97565-UN-14SEP10
A - Switch
Raise chopper (if equipped) with switch (A).

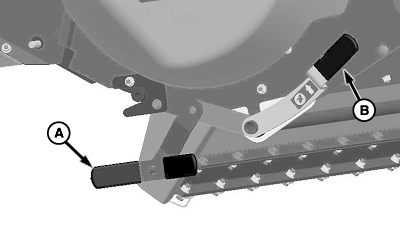

H86569-UN-12SEP06
A - Wing Nut
B - Handle
Loosen wing nut (A) and use handle (B) to disengage knifebank and clean chopper.

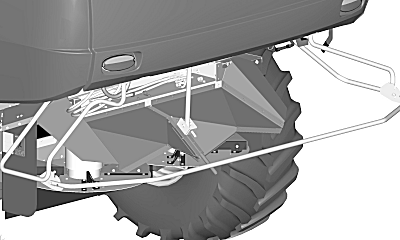

H98906-UN-27OCT10
OUO6075,000083A-19-20101201 |
