Every 250 Hours (Interim Tier 4/Stage III B)

1. IMPORTANT:


   H96428-UN-20AUG10


   H97453-UN-30JUL10


   H97458-UN-30JUL10

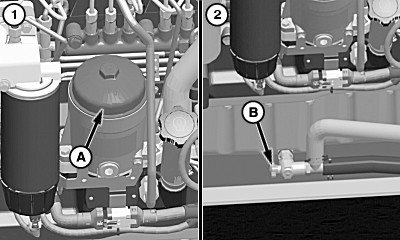

   A - Cap

   B - Drain

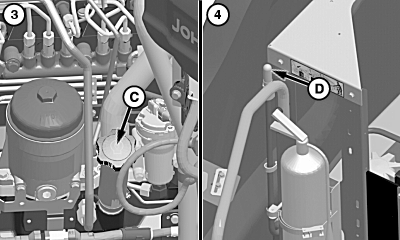

   C - Dipstick

   D - Fuel Tank Breather

   Change oil every 100 hours if fuel contains more than 0.5 % (or 5000 ppm) sulfur.

   Fill crankcase with seasonal viscosity grade oil or Torq-Gard™ (250 hours service interval). If using Plus-50™ or Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

   Interim Tier 4/Stage III B engines require Plus-50™ II engine oil or a API CJ-4, ACEA E9, ACEA E6 certified oils.

   Only Ultra Low Sulfur Diesel (ULSD) fuel with less than 0.0015% (or 15 ppm) sulfur content can be used in Interim Tier 4/Stage III B engines.

   Engine Crank Case Top Load Oil Filter - Remove cap (A) and remove filter. Replace filter and install cap. Tighten cap to specifications.

   Item	Measurement	Specification
   Oil Filter Cap	Torque	40 N•m (30 lb-ft)

---




2. Engine Crank Case Top Load Oil - Open drain (B) to remove oil.

3. Engine Crank Case Top Load Oil - Remove dipstick (C) to fill and check oil level after filling.

4. Fuel Tank Breather - Visually inspect fuel tank breather (D). Do not allow debris to collect on breather. Remove fuel tank breather from hose and clean.
