Every 50 Hours

1.

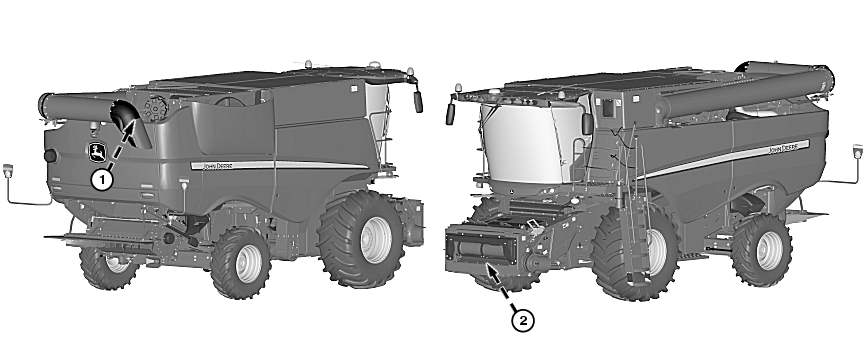

   H97796-UN-27AUG10


   H97797-UN-27AUG10

   (Tier 2/Stage II) / (Interim Tier 4/Stage III B)


   H97798-UN-27AUG10

   A - Drain

   B - Cleanout Areas

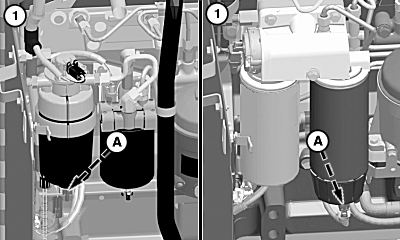

   Water Separator Primary Fuel Filter Check separator bowl for water. Open drain (A) and drain water out separator bowl.

---

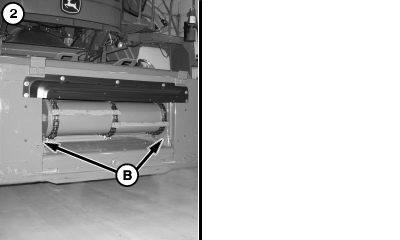

2. Contour-Master Feeder House - Check cleanout areas (B) for packed material which could prevent header from tilting. Clean out if required.
