Chopper Vanes (Electric Motor)—Adjusting

CAUTION:

H98134-UN-21SEP10

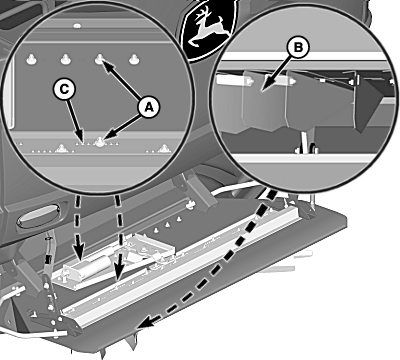

A - Nuts

B - Chopper Vane

C - Holes

NOTE: Adjustments can be made to chopper vanes if factory settings do not produce adequate spread width or even distribution.

Chopper vanes are factory set for 9.1 m (30 ft.) platforms.

Loosen nuts (A) and adjust chopper vane (B) to different holes (C) if needed to control distribution of straw spread width. See Chopper Vanes (Electrical Adjust)—Factory Settings later in this section.

Tighten nuts and repeat as needed on remaining chopper vanes.
