Every 400 Hours

H98758
H98758-UN-20OCT10

H98753
H98753-UN-20OCT10

H98754
H98754-UN-20OCT10

H98756
H98756-UN-20OCT10

H98757
H98757-UN-20OCT10

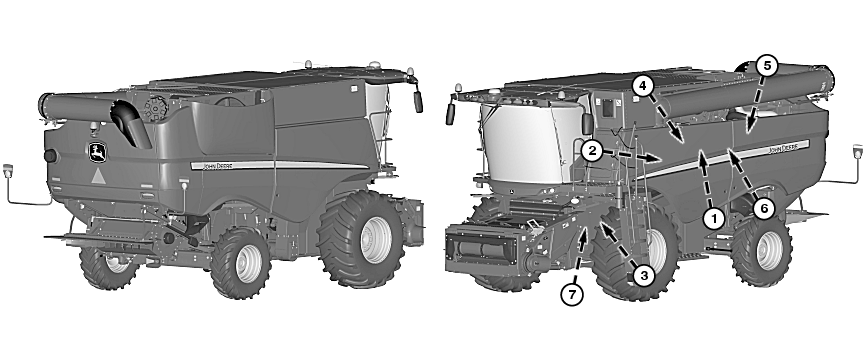

  1. Unloading Auger Upper Gearcase - Grease fitting.

  2. Unloading Auger Lower Gearcase Bearing - Grease fitting.

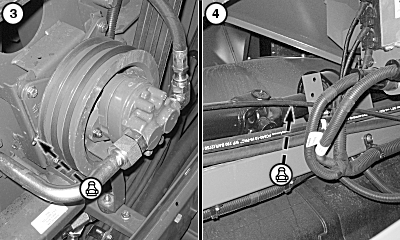

  3. Header/Reel Drive Pump Sheave Bearing - Grease fitting.

  4. Primary Countershaft Universal Joint Spline - Rotate to access fitting and grease.

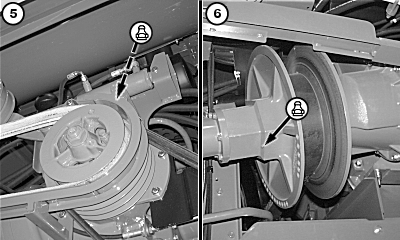

  5. Chopper/Unloading Driveshaft Bearing - Rotate sheave to access fitting on bottom of sheave groove and grease fitting.

  6. IMPORTANT: Remove pipe plug and install grease fitting. Pump 40—45 shots of grease into fitting. DO NOT OVER GREASE. Remove grease fitting and reinstall pipe plug.

    Variable Speed Driver Sheave - Close sheaves (high speed) before greasing at pipe plug in outer sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if operated at high speed all the time.

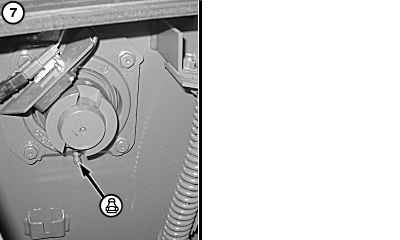

  7. Feed Accelerator Bearing (Left Side) - Grease fitting.

OUO6075,0000A36-19-20101020
