Grain Tank Loading Auger Deflector

CAUTION:

H98769-UN-21OCT10

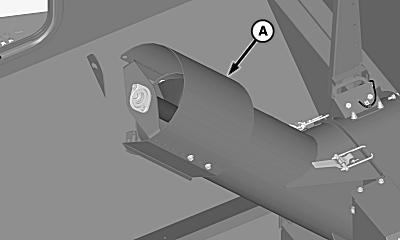

(78 L/sec. (2.2 bu./sec.) Unload Rate)

H96890-UN-14JUN10

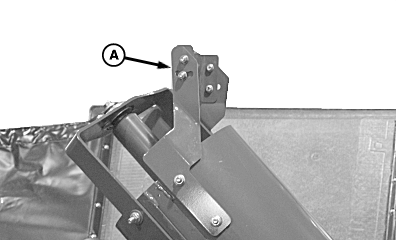

(116 L/sec. (3.3 bu./sec.) Unload Rate)

A - Deflector

78 L/sec. (2.2 bu./sec.) Unload Rate:

Position deflector (A) as needed.

Outward position:

• Windy conditions when harvesting crops like grass seed or rape.
• Corn—Grain tank will fill to the left and to the rear.

Inward position:

• Grain—Grain tank will fill to the right and to the front.

116 L/sec. (3.3 bu./sec.) Unload Rate:

Position deflector (A) as needed.

Counterclockwise rotation:

• Windy conditions when harvesting crops like grass seed or rape.
• Corn—Grain tank will fill to the left and to the rear.

Clockwise rotation:

• Grain—Grain tank will fill to the right and to the front.
