Unloading Auger Drive Belt—Replacing

CAUTION:

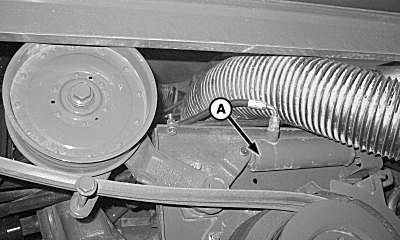

H99327-UN-06DEC10

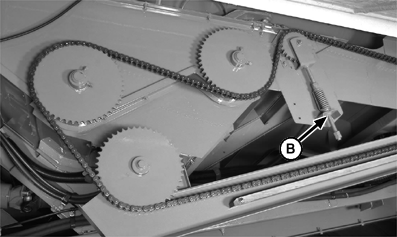

H54697-UN-21MAY99

(78 L/sec. (2.2 bu./sec.) Unload Rate Tensioner)

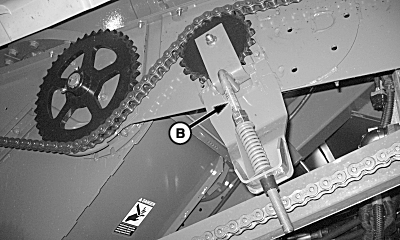

H96892-UN-14JUN10

(116 L/sec. (3.3 bu./sec.) Unload Rate Tensioner)

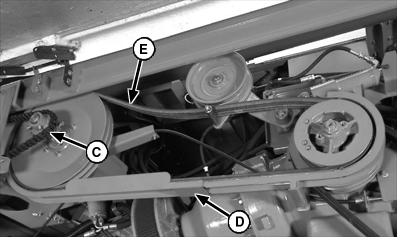

H54698-UN-21MAY99

A - Hydraulic Cylinder

B - Tensioner

C - Sprocket

D - Belt Trap

E - Belt

Verify hydraulic cylinder (A) is disengaged and retracted.

Loosen tensioner (B) on unloading auger drive chain.

Remove chain from driver sprocket (C) on countershaft.

Remove cap screws from belt trap (D).

Remove belt trap and belt (E).

Install replacement belt and install previously removed belt trap.

Install drive chain and adjust idler until washer aligns with end of gauge.
