Grain Tank Drain Holes

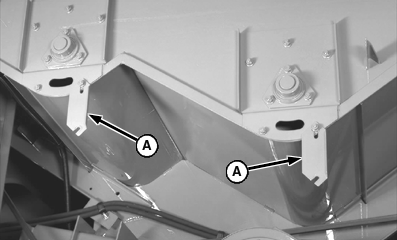

H62226-UN-19JAN00
(78 L/sec. (2.2 bu./sec.) Unload Rate)

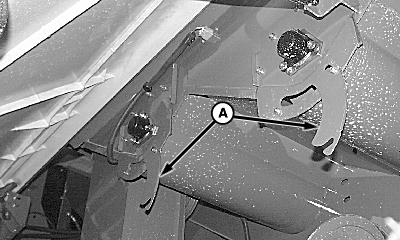

H80946-UN-27MAY04
(116 L/sec. (3.3 bu./sec.) Unload Rate)
A - Drain Hole Doors
Grain tank drain hole doors (A) are located on right-hand end of both cross augers and must be opened during storage or for cleaning grain tank.Loosen cap screws and slide doors away from drain holes.
OUO6075,0000A42-19-20101021 |
