Grain Tank Cross Auger Covers

78 L/sec. (2.2 bu./sec.) Unload Rate Grain Tank

CAUTION:

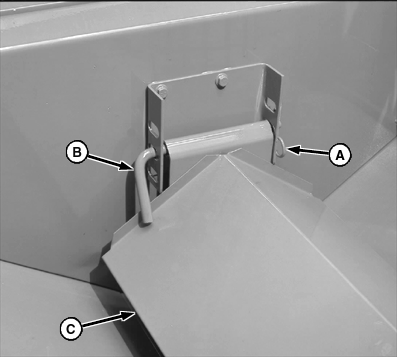

H54573-UN-08APR99

A - Locking Pins

B - Pins

C - Auger Cover

IMPORTANT: If these covers are raised too far in edible beans, auger drive shear bolt may break repeatedly, or damage could occur to augers or grain tank.

Adjust auger covers down to slow unloading rate.

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and install previously removed pins and locking pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Adjust auger covers down in edible beans.

116 L/sec. (3.3 bu./sec.) Unload Rate Grain Tank

CAUTION:

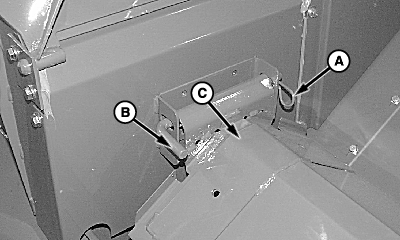

H80947-UN-27MAY04

A - Locking Pins

B - Pins

C - Auger Covers

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and install previously removed pins and locking pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Set auger covers to top position for all crops.
