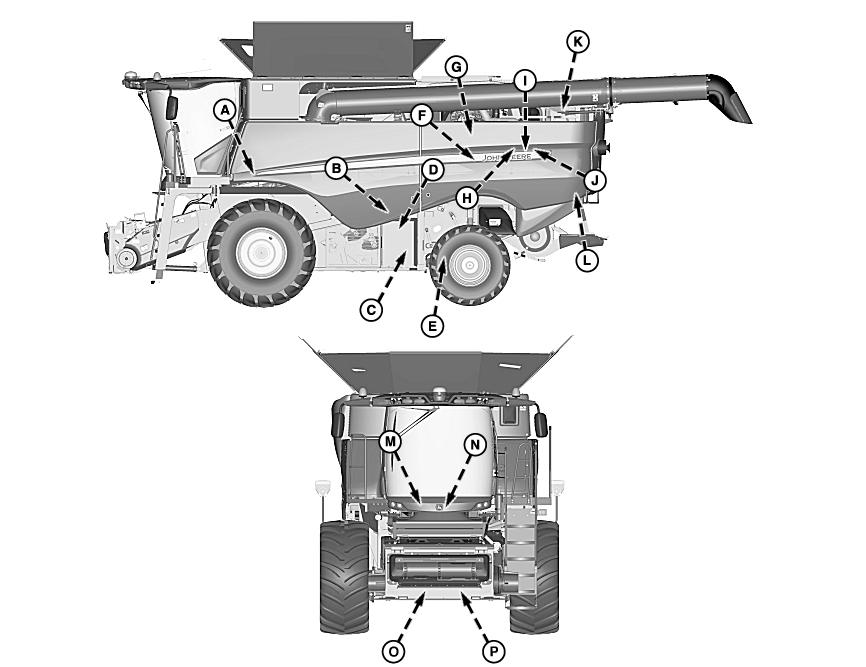

Hydraulic Component Locations

NOTE:

H99018
H99018-UN-07DEC10

A - Feeder House Reverser/Reel Drive Valve Block

B - Main Hydraulic Valve Block

C - Header Height Control Valve Block

D - Grain Tank Cover Valve Block (If Equipped)

E - Four Wheel Drive Valve Block (If Equipped)

F - Variable Speed Engine Fan Control Valve (Interim Tier 4/Stage III B)

G - Main Engine Gearcase Valve Block

H - Hydrostatic Pump

I - Main Hydraulic Pump

J - Steering Pump

K - Hydraulic Reservoir

L - Residue Valve Block

M - Service Brake Control Valve Block

N - Steering Hand Pump/Electro-Hydraulic Valve

O - Transmission Control Valve Block (Push Button Shift Transmission Machines)

P - Hydrostatic Motor

If a coil is suspected of not working, apply screw driver to coil with engine running to check energized condition (magnetized). See your John Deere dealer if suspected coil is not energized.
