Warning Lights—Replacing

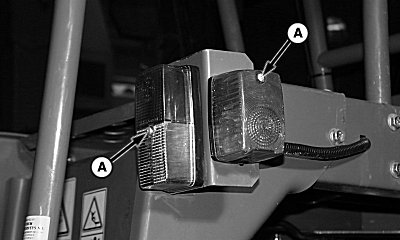

H66115-UN-01FEB01

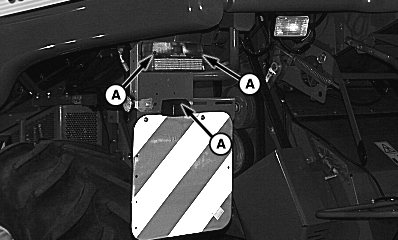

H66116-UN-01FEB01

A - Screws

Remove light bulb by pushing in and turning counterclockwise.

NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

Install bulb and lens cover in reverse order.
