Semi-Automatic Trailer Hitch— Attaching (Standard)

CAUTION:

H78504
H78504-UN-11SEP03

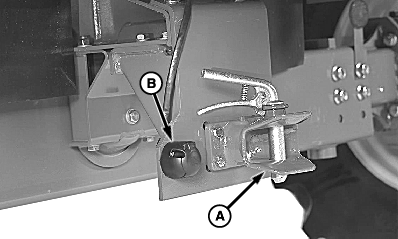

A - Hitch

B - Electrical Connector

Shut OFF engine, set parking brake and remove key before hooking up trailer.

Fully raise chopper.

Attach trailer to hitch (A) and secure with trailer hitch pin.

Connect trailer electrical harness to electrical connector (B).

OUO6075,0000AA3-19-20101117
