Automatic Rear Trailer Hitch—Attaching (Optional)
CAUTION:

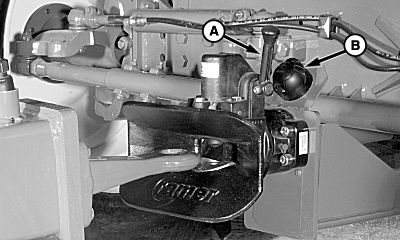

H81658-UN-13SEP04
A - Handle
B - Electrical Connector
Shut OFF engine, set parking brake and remove key before hooking up trailer.Fully raise chopper.
Raise handle (A) to open lock pin and attach trailer to machine. When trailer hitch aligns with lock pin, handle will lower and automatically lock trailer hitch in place.
Connect trailer electrical harness to electrical connector (B).
