Brake Fluid Reservoir (If Equipped)
IMPORTANT:

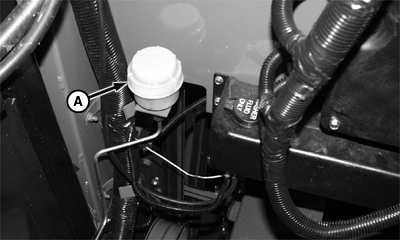

H62289-UN-20JAN00
A - Cap
If you experience soft or spongy brakes, a loss of braking power or park brake will not hold, see your John Deere dealer.Check fluid through cap (A). Be careful to keep dirt out of system.
Fluid should be 6 mm (1/4 in.) from top.
Use SAE J1703d or DOT-3 hydraulic brake fluid.
Keep fluid off of painted surfaces.
OUO6075,0000AB5-19-20101210 |
