Set Reel Safety Stops

1.
   H93478-UN-20FEB09

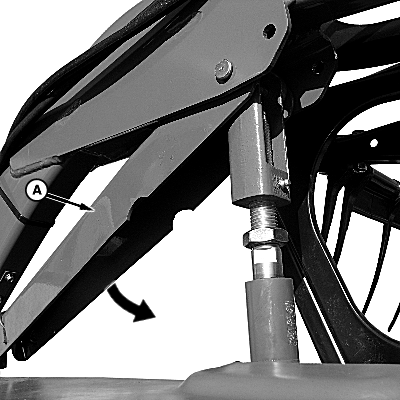

   Right-Hand Side of Header Shown

   A - Safety Stop

   Raise reel completely and engage safety stops (A) on reel lift cylinders for both sides of platform. Stop must be snapped over cylinder with lock clip.

---




2. For Split Reel Model: Center reel lift cylinder is hydraulically locked out when electrical signal from combine is removed (shutting OFF combine).

3. Shut OFF engine, set parking brake, and remove key.
