Every 50 Hours of Operation

NOTE: All checks should be made with platform on ground and engine shut OFF.

  1. Check Main Gearbox Oil Level

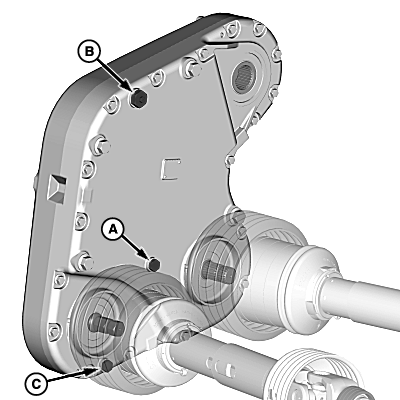

    H93104
    H93104-UN-09APR09

    Right-Hand Side of Main Gearbox

    A - Check Plug

    B - Plug with Breather

    C - Drain Plug

    1. Remove check plug (A) to check oil level.

    2. NOTE: To ease filling, add oil at breather port (B).

      If necessary, add 80W-90 oil up to check plug hole.

    3. Install plugs.


  2. Check 90° Gearbox Oil Level

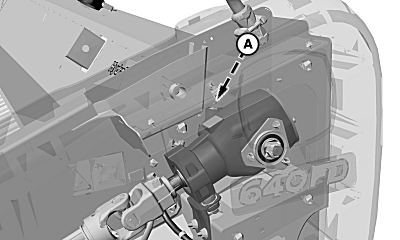

    H93808
    H93808-UN-16JUN09

    Left-Hand Side Shown

    A - Dipstick

    1. Remove dipstick (A) to check oil level.

    2. If necessary, add 80W-90 oil to proper level and install dipstick.

    3. Repeat procedure on opposite side of platform.


  3. Check Center Feed Gearbox Oil Level

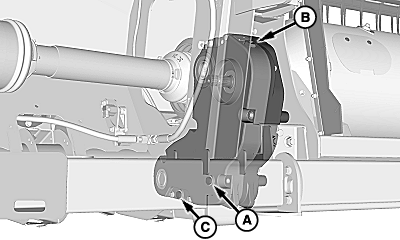

    H93807
    H93807-UN-09APR09

    A - Check Plug

    B - Plug with Breather

    C - Drain Plug

    1. Remove check plug (A) to check oil level.

    2. NOTE: To ease filling, add oil at breather port (B).

      If necessary, add 80W-90 oil up to check plug hole.

    3. Install plugs.


  4. Check Side Draper Gearbox Oil Level

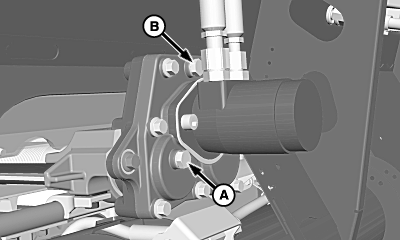

    H93913
    H93913-UN-07MAY10

    A - Check Plug

    B - Fill Plug

    1. Remove check plug (A) to check oil level.

    2. NOTE: To ease filling, add oil at fill plug (B).

      If necessary, add 80W-90 oil up to check plug hole.

    3. Install plugs.

    4. Repeat procedure on opposite side of platform.


  5. Lubricate Knife Head Grease Fitting

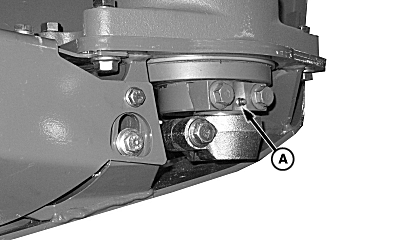

    H93043
    H93043-UN-31JUL09

    A - Knife Head Grease Fitting

    1. Apply grease to knife head grease fitting (A).

    2. Repeat procedure on opposite side of platform.


  6. Lubricate Feed Drum Drive Shaft Grease Fitting

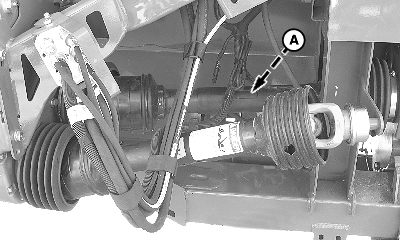

    H93458
    H93458-UN-19FEB09

    A - Center Feed Drive Shaft Grease Fitting

    Align hole in shield to locate grease fitting. Apply grease to center feed drive shaft grease fitting (A).


  7. Lubricate Input Drive Shaft Grease Fitting

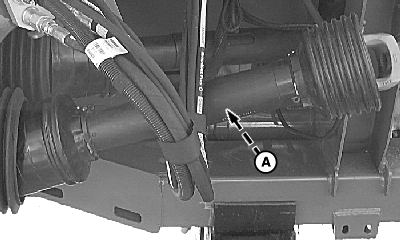

    H93459
    H93459-UN-19FEB09

    A - Input Drive Shaft Grease Fitting

    Align hole in shield to locate grease fitting. Apply grease to input drive shaft grease fitting (A).


  8. Lubricate Reel Grease Fitting

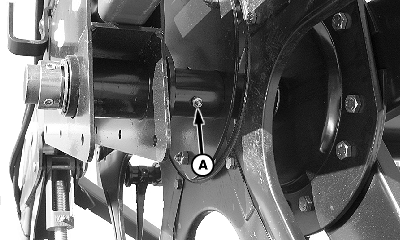

    H93461
    H93461-UN-19FEB09

    Right-Hand Side Shown

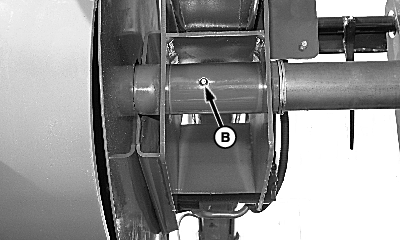

    H93462
    H93462-UN-26MAR09

    Center Arm (Split Reel) Shown

    A - Reel Grease Fitting

    B - Reel Grease Fitting (Split Reel Only)

    Apply grease to reel grease fitting (A) on both ends of reel.

    Split Reel Only: Also apply grease to reel grease fitting (B) at center lift arm.


  9. Lubricate Telescoping Knife Drive Shaft Grease Fitting

    H93102
    H93102-UN-31JUL09

    A - Knife Drive Shaft Grease Fitting

    1. Apply grease to knife drive shaft grease fitting (A).

    2. Repeat procedure on opposite side of platform.


KR43067,00005BC-19-20100524
