Operating Flex Platform In Rigid Mode

Operating a flex platform in rigid mode may be desired for some crops and conditions. A combination of hydraulic adjustments and mechanical components will allow a flex platform to be operated in rigid mode.

1. Set HydraFlex pressure to maximum.

   1.
      H100053-UN-03FEB11

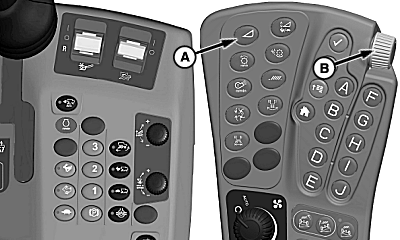

      A - HydraFlex Pressure Switch

      B - Selection Dial

      S Series Combine:

      To operate in rigid mode, press HydraFlex pressure switch (A) and rotate selection dial (B) clockwise to increase pressure.

   ---




   2.
      H93483-UN-10MAR10

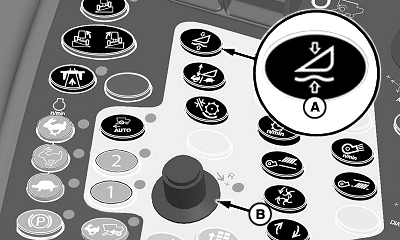

      A - HydraFlex Pressure Switch

      B - Selection Dial

      70 Series Combine:

      To operate in rigid mode, press HydraFlex pressure switch (A) and rotate selection dial (B) clockwise to increase pressure.

2. IMPORTANT:


   H93968-UN-06MAY09


   H93969-UN-06MAY09

   A - HydraFlex Cylinder

   B - Float Arm without HydraFlex Cylinder

   C - Lockout Bracket

   D - Hardware

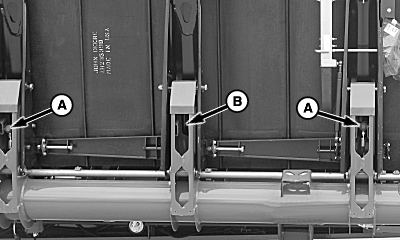

   Install lockout brackets on float arms without hydraulic cylinders (B) to maintain rigid mode.

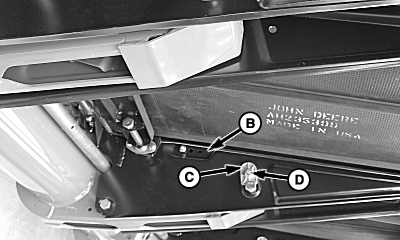

   On float arms without a HydraFlex cylinder (A), install lockout brackets (C) and hardware (D).

---
