Hydrostatic Drive System, Main Hydraulic System and Main Engine Gearcase Oils

NOTE: Machines come factory filled with John Deere Hy-Gard™.

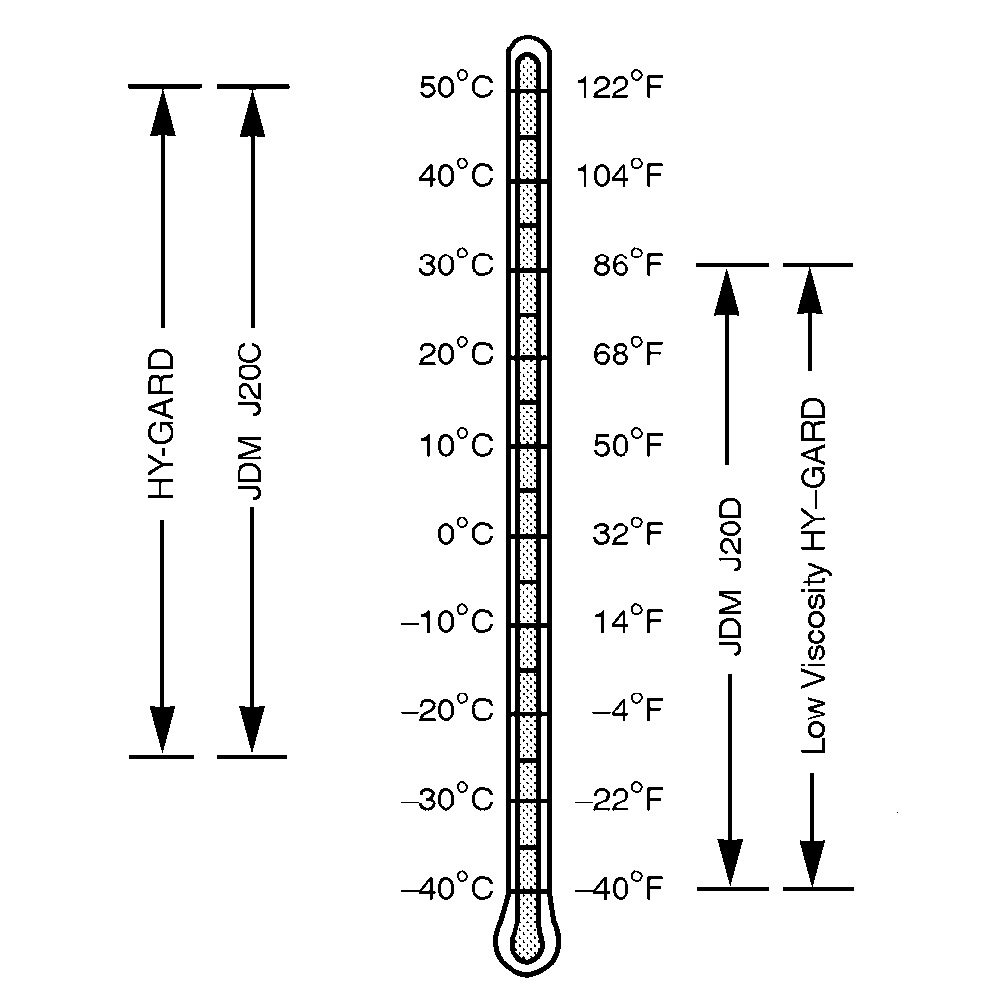

ZX1030848
ZX1030848-UN-15SEP02

Only the following oils are approved:

  • John Deere Hy-Gard™
  • Oils meeting John Deere Standard JDM J20C

NOTE: For usage in extremely low temperatures only the following may be substituted:

  • Low Viscosity Hy-Gard™
  • Oils meeting John Deere Standard JDM J20D

Hy-Gard is a trademark of Deere & Company

OUO6075,0000091-19-20080505
