Display Icon Identification

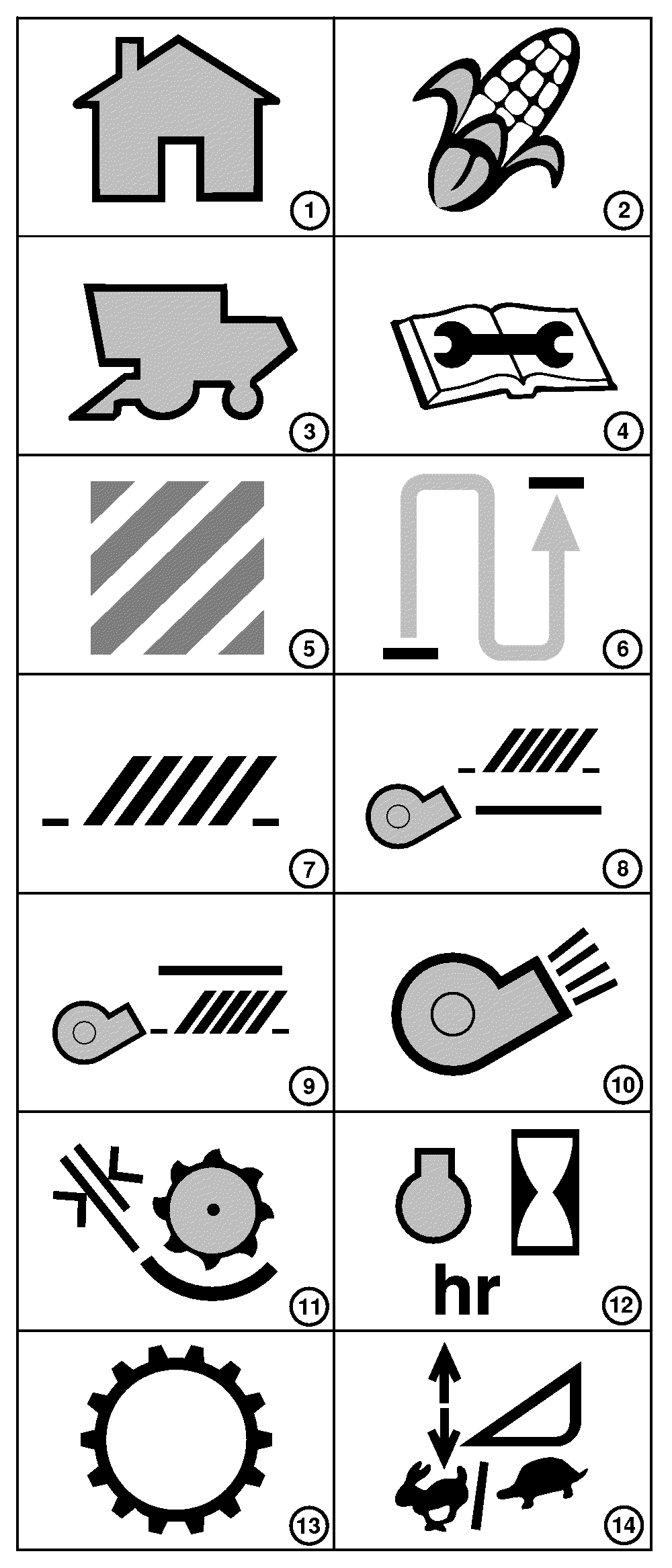

H90897-UN-28FEB08

Harvesting Information (2): displays current harvest monitor information, performance/productivity, totals and allows operator to adjust desired settings.

Setup (3): displays current machine settings, grain loss sensitivity (seed size), current header width, moisture setup and Harvest Smart setup (if equipped).

Diagnostics and Calibration (4): displays machine calibrations, diagnostic readings templates and special tests (templates).

Area Harvested (5): displays amount of area harvested.

Distance Harvested (6): displays total distance traveled for current active load.

Generic Cleaning Shoe Element (7): displays a generic icon for both chaffer/sieve elements settings on home page.

Chaffer (8): displays current chaffer position.

Sieve (9): displays current sieve position.

Cleaning Fan (10): displays current fan speed.

Threshing Speed/Clearance (11): displays current rotor speed and clearance.

Engine Hours (12): displays accumulated engine hours.

CommandTouch Multi-Speed Feeder House Gear (If Equipped) (13): displays selected gear for feeder house speed.

Header Height Rate and Sensitivity (14): displays current rate and sensitivity settings.

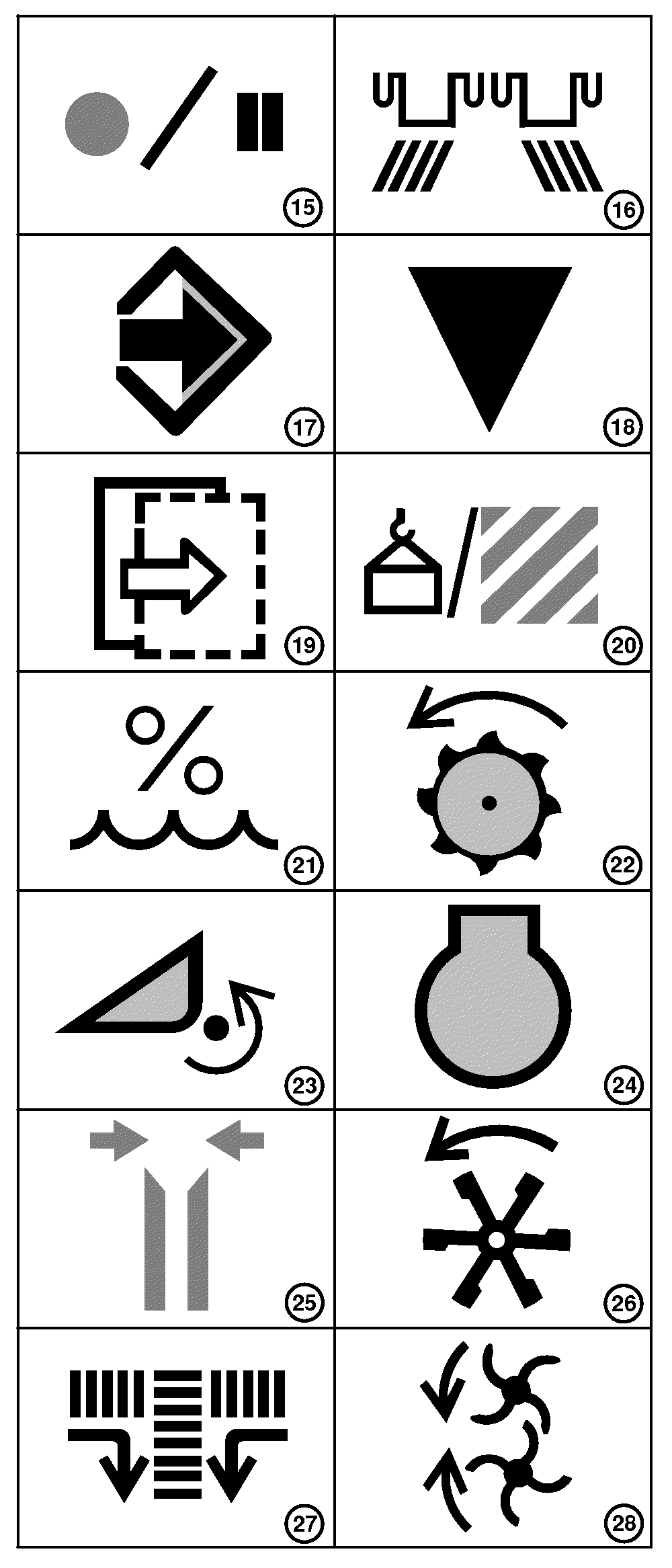

H90898-UN-28FEB08

Vane Angle (if Equipped) (16): displays current vane angle position.

Enter/Accept (17:) allows operator to enter/accept desired information or settings.

Calibrate (18): allows operator to calibrate certain features.

Next Step (19): allows operator to view next page of information.

Yield (20): displays average or instantaneous crop yield.

Moisture (21): displays average or instantaneous moisture.

Threshing Speed (22): displays current threshing speed.

Backshaft Speed (23): displays current backshaft speed.

Engine Speed (24): displays current engine speed.

Deck Plate Spacing (25): displays current deck spacing position.

Reel Speed (26): displays current reel speed.

Draper Speed (27): displays current draper speed (if equipped).

Spreader Speed (28): displays current spreader speed (if equipped).

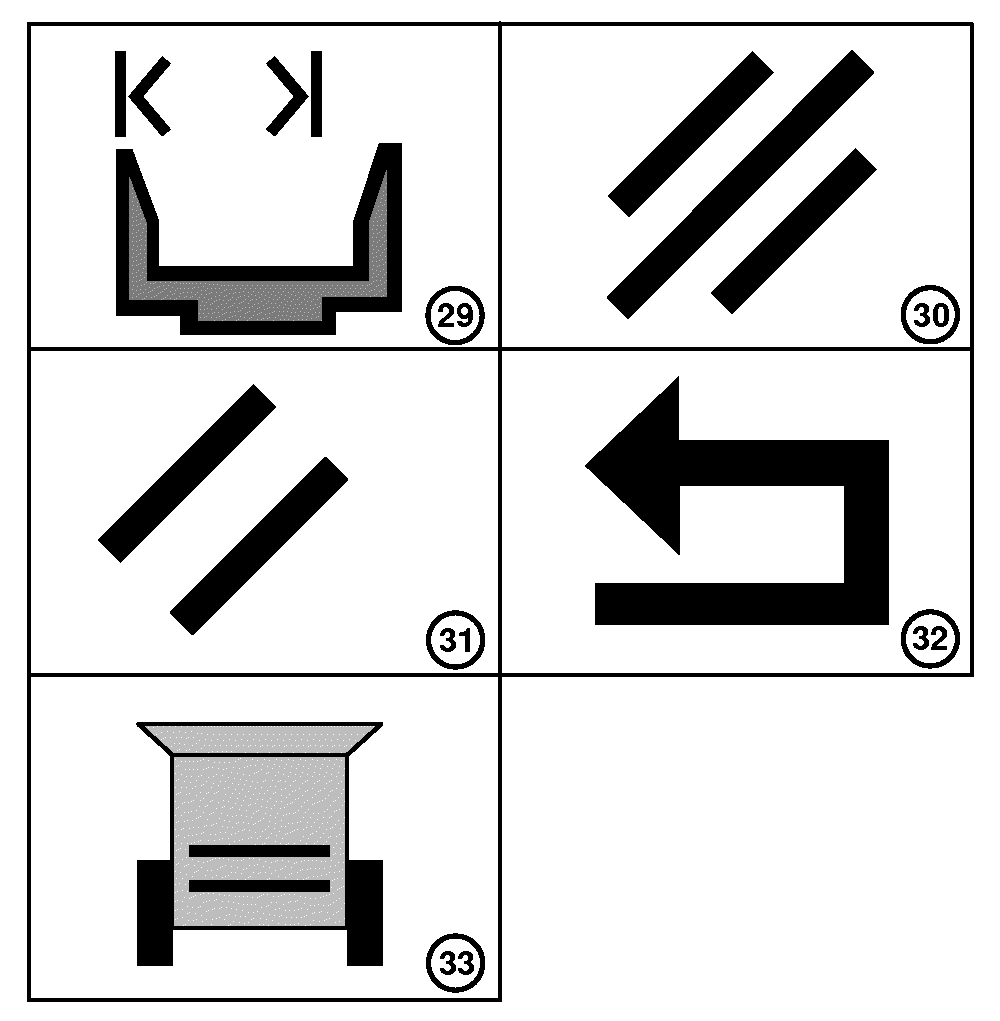

H90899-UN-28FEB08

Cancel (30): allows operator to cancel desired information or settings.

Clear (31): allows operator to clear desired information or settings.

Return/Back (32): allows operator to view previous page.

Self-Leveling Shoe (If Equipped) (33): displays current angle for chaffer/sieve elements.
