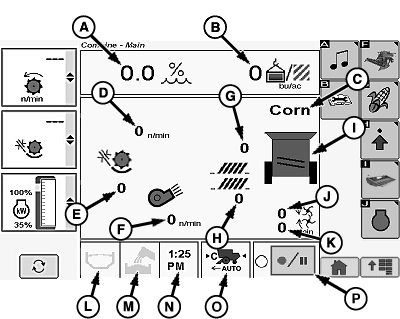

Combine—Main Screen

NOTE:

H94425
H94425-UN-04OCT10

Viewable machine readings only.

  • Moisture (If Equipped) (A)
  • Yield (If Equipped) (B)
  • Crop (C)
  • Machine Settings
    • Threshing Speed (D)
    • Threshing Clearance (E)
    • Fan Speed (F)
    • Chaffer Clearance (G)
    • Sieve Clearance (H)
    • Self-Leveling Shoe (If Equipped) (I)
  • Spreader Speed/Chopper Vane Angle Setting 1 (If Equipped) (J)
  • Spreader Speed/Chopper Vane Angle Setting 2 (If Equipped) (K)
  • Grain Tank 3/4 and Full Status (L)
  • Unloading Auger Out/Engage Status (M)
  • Display Clock (N)1
  • Harvest Smart Feed Rate Status (OFF, Smart, or Capacity) (If Equipped) (O)
  • Manual Recording (ON/OFF) (P)

1 Display clock only appears on CommandCenter display screens.

OUO6075,00003FF-19-20101007
