Armrest Display Navigation (GreenStar™ 3 CommandCenter™ Non-Touchscreen)

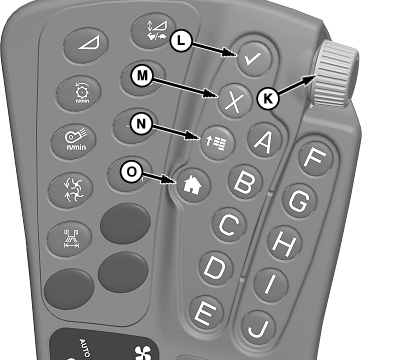

H94422-UN-04MAR10

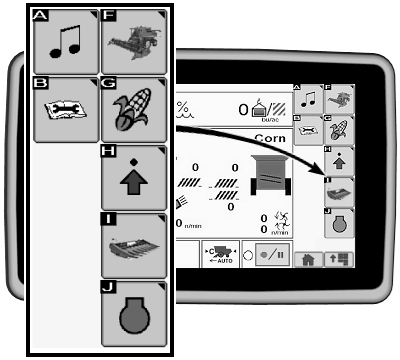

H94535-UN-30APR10

Selection Dial and Confirm Switch Method:

Use selection dial (K) to highlight desired icons (A—J).

Once desired icon is highlighted, use the following dial and switches:

• Selection Dial (K): Rotate dial to:
  • Scroll through available items on selected page
  • Increase or decrease values in a selected item
• Confirm Switch (L): Once available item is selected, use selection dial and press switch to:
  • Select item
  • Toggle between available selections within item
  • Enter/Save values
• Cancel Switch (M): Press switch to cancel current selection.

Shortcut Switch Method:

Shortcut switch (A—J) allows a one-touch selection of desired input field or corresponding item on display.

• Shortcut Switches (A—J): Press to select corresponding icon on armrest display or GreenStar Display (if equipped).

Navigational Switches:

• Main Menu Switch (N): Press switch to change active application that display is running. Applications include:
  • Message Center
  • Display Settings
  • Layout Manager
  • Combine
  • Performance Monitor
  • GreenStar
  • Video
  • Access Manager
• Home Switch (O): Displays user defined home screen. If multiple screens are defined, pressing home switch multiple times toggles through each defined home screen.
