Display Region Layouts

NOTE:

H94423
H94423-UN-04OCT10

Displayed screen shown is reference only. Screens will appear differently due to machine options.

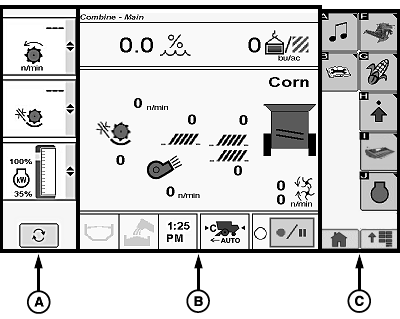

Display is divided into three regions:

  • Left Region (A): allows operator to monitor and toggle between the following:
    • Detail Machine Settings
    • Guidance Information
    • Performance Monitor Settings
  • Center Region (B): allows operator to view and change machine settings in a wide variety of applications.
  • Right Region (C): displays icon options available to operator from current screen.
    • Selecting desired icon in right region displays a new screen, function, or allows changing of settings.

OUO6075,0000407-19-20101004
