Harvesting Information Screen

Harvesting Information:

H94540-UN-05OCT10

• Yield (A)
  • Wet (B)
  • Dry (C)
  • Instantaneous (Recording ON) (D)
  • Average (Recording OFF) (D)
  • Minimum (E)
  • Maximum (F)
• Moisture (G)
  • Instantaneous (Recording ON) (H)
  • Average (Recording OFF) (H)
  • Minimum (I)
  • Maximum (J)
• Cut Width (K)
  • Increase/Decrease (L)

H94542-UN-07OCT10

H94543-UN-05OCT10

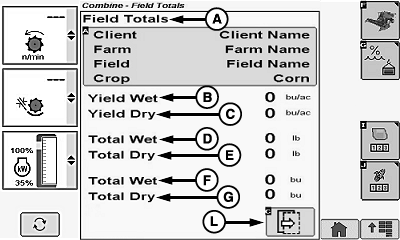

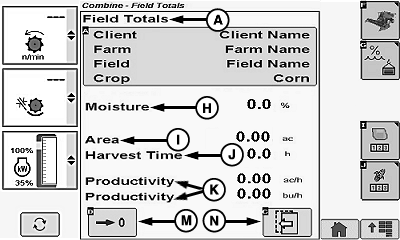

Field Totals:

NOTE: Farm/Field naming is setup in the GreenStar application. Refer to GreenStar manual for further information.

The following appears on GreenStar display (if equipped) instead of on armrest display.

If machine is not equipped with moisture sensor, only the following Field Totals information appears:

• Area
• Harvest Time
• Productivity

• Field Totals (A)
• Yield Wet (B)
• Yield Dry (C)
• Total Wet (Weight lb. or kg) (D)
• Total Dry (Weight lb. or kg) (E)
• Total Wet (Yield Units) (F)
• Total Dry (Yield Units) (G)
• Moisture (H)
• Area (I)
• Harvest Time (J)
• Productivity (K)

• Items to select
  • Next Page Icon (L)
  • Clear Totals Icon (M)
  • Previous Page Icon (N)

H94544-UN-05OCT10

H94545-UN-05OCT10

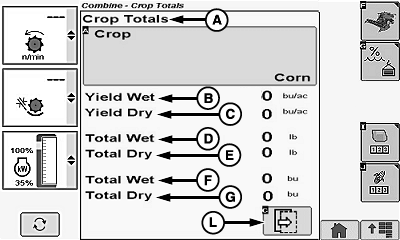

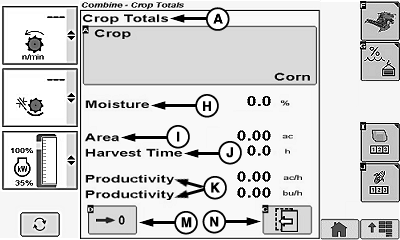

Crop Totals:

NOTE: Farm/Field naming is setup in the GreenStar application. Refer to GreenStar manual for further information.

The following appears on GreenStar display (if equipped) instead of on armrest display.

If machine is not equipped with moisture sensor, only the following Field Totals information appears:

• Area
• Harvest Time
• Productivity

• Crop Totals (A)
  • Yield Wet (B)
  • Yield Dry (C)
  • Total Wet (Weight lb. or kg) (D)
  • Total Dry (Weight lb. or kg) (E)
  • Total Wet (Yield Units) (F)
  • Total Dry (Yield Units) (G)
  • Moisture (H)
  • Area (I)
  • Harvest Time (J)
  • Productivity (K)
• Items to select
  • Next Page Icon (L)
  • Clear Totals Icon (M)
  • Previous Page Icon (N)
