Clear Field Totals

NOTE:

H96262
H96262-UN-04MAY10

Harvesting Information Icon

H94548
H94548-UN-05OCT10

H94549
H94549-UN-05OCT10

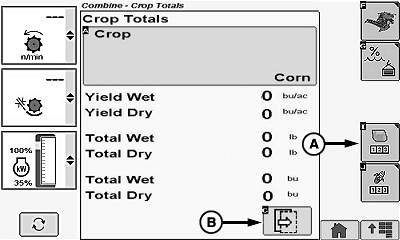

A - Field Totals Icon

B - Next Page Icon

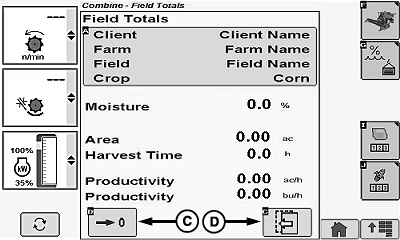

C - Field Totals Reset Icon

D - Previous Page Icon

The following appears on GreenStar display (if equipped) instead of on armrest display.

If machine is not equipped with moisture sensor, only the following Field Totals information appears:

  • Area
  • Harvest Time
  • Productivity

Harvesting information icon switches between corn and wheat based on type of header connected to machine.

Touch or press confirm switch when harvesting information icon is highlighted.

Touch or press confirm switch when field totals icon (A) is highlighted.

Touch or press confirm switch when next page icon (B) is highlighted to advance to next page.

Touch or press confirm switch when desired icon is highlighted:

  • Field Totals Reset Icon (C) - deletes field totals for selected farm/field/crop.
  • Previous Page Icon (D) - allows operator to view previous page.

OUO6075,0000411-19-20100503
