Harvest Smart Feed Rate (If Equipped)

NOTE:

H94473-UN-31MAR10

Combine Setup Icon

H94637-UN-05OCT10

H95980-UN-05OCT10

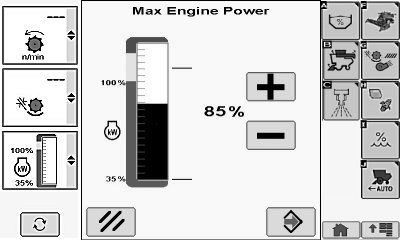

Max Engine Power

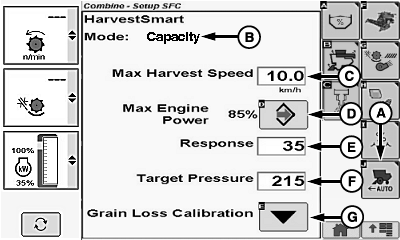

A - Harvest Smart Feed Rate Setup Icon

B - Operating Mode

C - Max Harvest Speed

D - Max Engine Power Icon

E - Response

F - Target Pressure

G - Grain Loss Calibration

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when Harvest Smart Feed Rate setup icon (A) is highlighted.

Refer to Harvest Smart Feed Rate section for further information on operating the following:

• Operating Mode (B)
  • OFF
  • Smart
  • Capacity
• Max Harvest Speed (C)
• Max Engine Power Icon (D)
• Response (E)
• Target Pressure (F)
• Grain Loss Calibration (G)
