Diagnostic and Calibrations Screen


Calibrations:

NOTE:

H94478
H94478-UN-31MAR10

Diagnostic Icon

H94638
H94638-UN-05OCT10

Calibrations

Calibrations are done using instructions shown on screen. Operator selects which calibration and highlights calibrate icon, and is guided through procedure.

Touch or press confirm switch when diagnostic icon is highlighted.

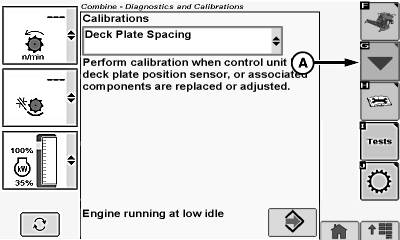

Touch or press confirm switch when calibration icon (A) is highlighted.

  • Refer to When to Calibrate in Calibration Procedures section for listing of calibrations.

Diagnostic Readings:

H94639
H94639-UN-05OCT10

Diagnostic Readings

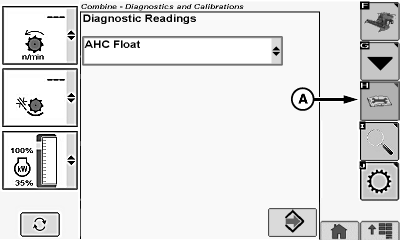

Touch or press confirm switch when diagnostic readings icon (A) is highlighted.

  • Diagnostic Readings - assists in providing more information about a machine subsystem for troubleshooting. Display gathers data from diagnostic addresses and displays collected information on one page.

Special Tests:

H94640
H94640-UN-05OCT10

Special Tests

NOTE: Cleaning Fan Speed Adjust special test may not perform correctly if cleaning fan speed slowdown kit was installed.

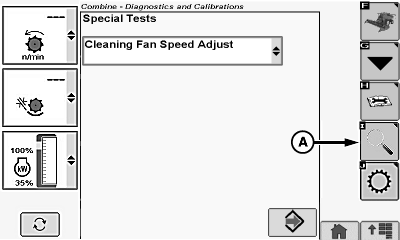

Touch or press confirm switch when diagnostic special tests icon (A) is highlighted.

  • Diagnostic Special Tests - helps minimize amount of time required to diagnose an issue by leading operator or technician through a special set of instructions. Machine automatically checks as the operator is guided through the special tests.

Tow Mode Setup 1:

IMPORTANT:

H94941
H94941-UN-05OCT10

Do not tow machine except in an emergency for a short distance at 8 km/h (5 mph). See Towing Machine in Transporting section for further information.

NOTE: Tow Mode Setup allows operator in emergency modes to select the following.

Touch or press confirm switch when tow mode setup icon (A) is highlighted.

Touch or press confirm switch when box is highlighted.

  • Shift transmission to neutral and enable park brake disengaged Box (B) - shifts machine to neutral position and enables park brake disengage.

NOTE: Operator must remain in seat for park brake to be disengaged.

Press park brake switch on armrest to release brakes before towing machine.

1 Only appears with ProDrive and push button shift transmission machines.
